Airmar 25 Meter Standard WeatherStation NMEA 0183 Cable - WS-C25

Brand: Airmar, Condition: New
List price: $147.95
$123.24
You save: $24.71 (17%)
30 days
WS-C25
+

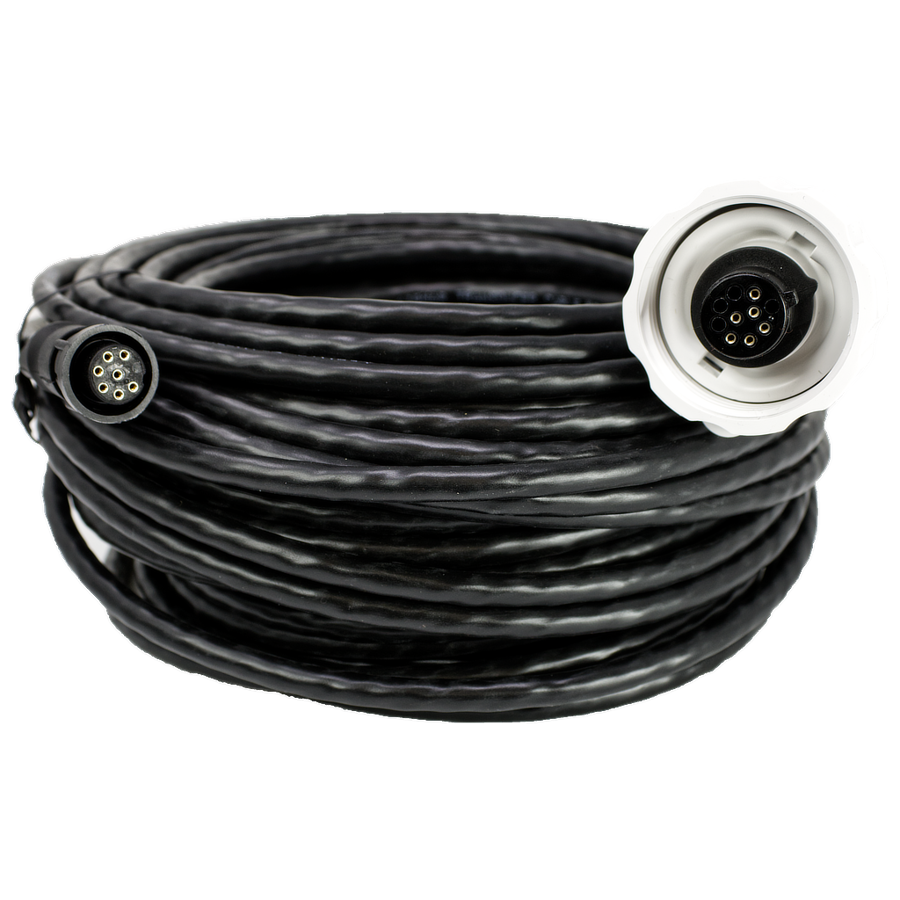

Airmar 25 Meter Standard WeatherStation NMEA 0183 Cable - WS-C25

With NMEA 0183 output only. End in an Airmar 8-Pin connector which can be removed for connection to bare-wire devices.

WS-C01 (1m/3')

WS-C10 (10m/33')

WS-C15 (15m/49')

WS-C25 (25m/82')

WS-C35 (35m/115')

WS-C45 (45m/148')

WeatherStation Cables

WeatherStation cables are available in four versions: NMEA 0183, NMEA 2000, combined NMEA 0183 and 2000, and Furuno NMEA 0183. All cables have a round white connector at one end that fits into the base of a weatherstation.

NMEA 2000 cables end in a standard male NMEA 2000 5-Pin connector. If the cable is longer than 6 meters, it contains a built-in termination resistor and is intended to be used as an extension of the network backbone.

NMEA 0183 cables end in an Airmar 8-Pin connector (CX-128) which can be removed if necessary.

Combined cables end in an Airmar 8-Pin connector and are supplied with an Airmar splitter box that has NMEA 0183 and NMEA 2000 output ports.

Furuno cables end in a 7-Pin Furuno connector and are designed to plug into Furuno NMEA 0183 equipment.

Model 33-862-03
