Maretron Mid Bulk Cable (Single Piece per 100 meter spool - gray) DG1-100C

Maretron Mid Bulk Cable (Single Piece per 100 meter spool - gray) DG1-100C

Regular price $452.70 USD
Regular price $503.30 USD Sale price $452.70 USD
Sold out
Shipping calculated at checkout.

2 in stock

View full details

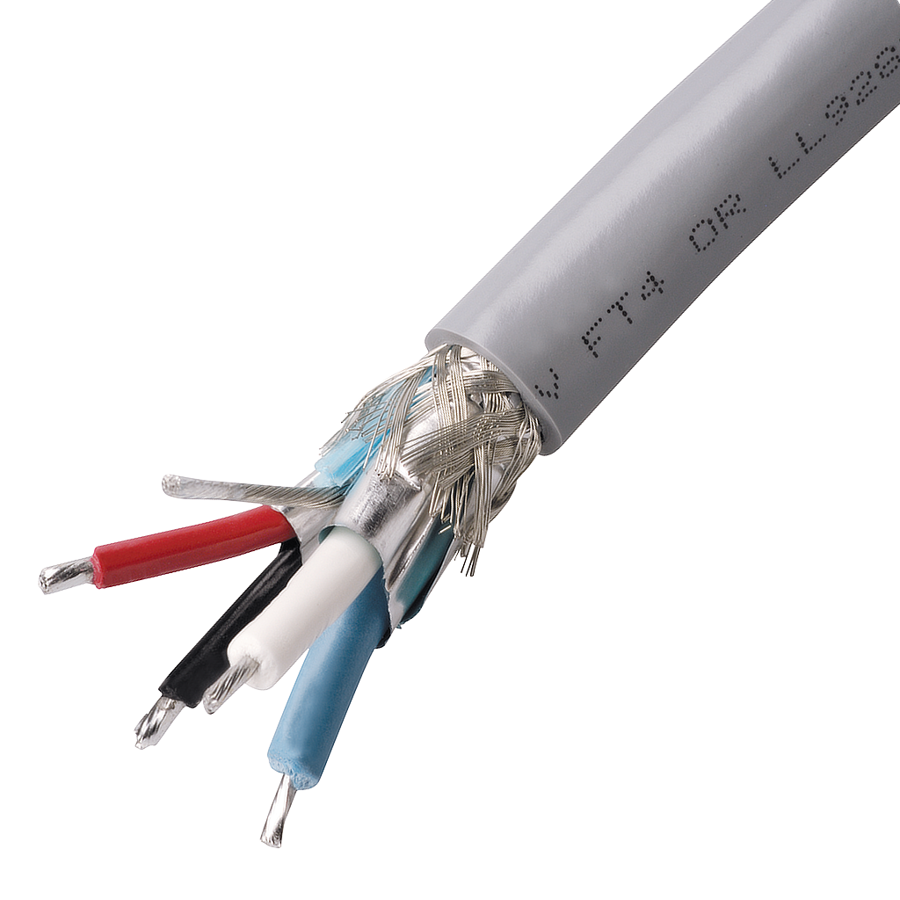

Maretron Mid Bulk Cable (Single Piece per 100 meter spool - gray) DG1-100C

Bulk Mid cable is primarily used as drop cable but can be used as the trunk line depending on network power requirements. Mid cable is for max 4-amps. Uses field attachable micro connectors (not included).

Please make sure you are ordering the correct size cable, as spools of cable are not returnable.

Features

  • Outer Jacket Mat/Color: PVC/Gray
  • Insulation Material: PE (data wires), PVC (power wires)
  • Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

    POWER PAIR:

    • Wire: 2x16 (1.29mm) AWG
    • Resistance/Conductor: 4.1 Ohms/1000 ft max
    • Max Amperage: 14 Amps
    • Color Code: Red/Black

      DATA PAIR:

      • Wire: 2x20 (0.81mm) (AWG)
      • Characteristic Impedance: 120 Ohms ± 10%
      • Capacitance: 10.75 pF/ft
      • Color Code: White/Blue

        APPROVALS:

        • UL: PLTC 75°C Sunlight Resistant E90625,
        • AWM 80°C 300V
        • CSA: CMX-OUTDOOR-CMG LL54185 75°C,
        • AWM I/II A/B 80C 300V FT4
        • NMEA: NMEA 2000® Approved
        • IEC: IEC-61162-3
