Maretron NMEA 2000 Ultrasonic Wind/Weather Station WSO200

Brand: Maretron, Condition: New
List price: $595.00
$535.95
You save: $59.05 (10%)
WSO200
On backorder
+
Note: You are pre ordering this item. It is anticipated to be available for shipment on 12/22/2022

It's finally here! Well, just about. Pre-order for expected delivery before the end of the year.  That would be 2022.

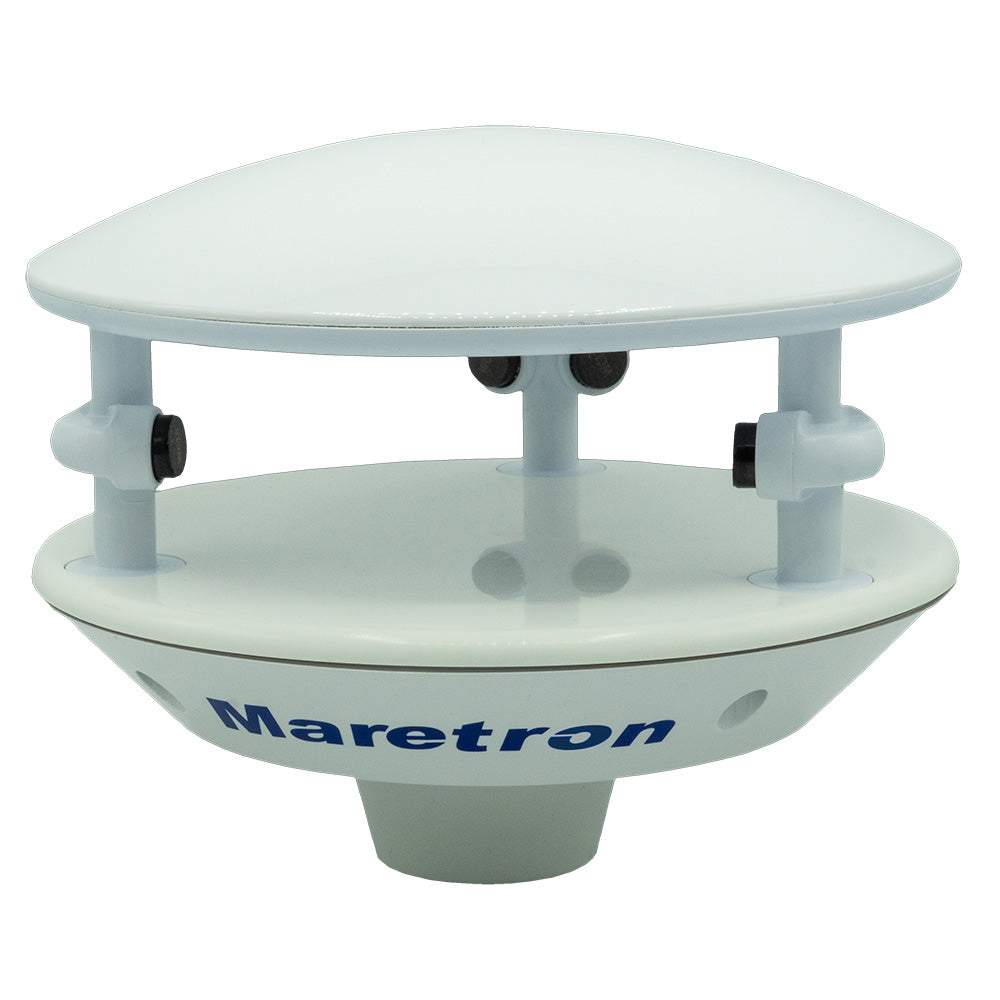

Maretron WSO200 Ultrasonic Wind and Weather Station

Maretron's outdoor weather station measures wind speed and direction, air temperature, barometric pressure, and relative humidity. The wind measurement is performed using ultrasonic sensors, which means there are no moving parts to wear out or to get caught in the rigging.

The WSO200 accurately measures wind speed and direction under tilt of up to 30°, making it ideal for sail as well as power conditions.

When used with Maretron's SSC300 compass and a display such as Maretron's N2KView® vessel monitoring system, or Maretron's DSM570 color graphics displays, the user will be able to view both apparent and true wind speed and direction as well as dew point and wind chill factor.

The WSO200 mounts on a 1"-14 Standard Marine Mount

The WSO200 provides these functions:

  • Apparent Wind Speed
  • Apparent Wind Direction
  • Atmospheric Pressure
  • Air Temperature
  • Relative Humidity

 * Configuration of certain parameters are made much easier using Maretron DSMxxx, USB100, or IPG100

Second Generation Enhancements:

  • User Replaceable Humidity Sensor
  • Higher Signal to Noise Ratio
  • Lower Power Consumption

The second generation WSO200 is a marine grade ultrasonic weather station that accurately measures wind speed and direction, air temperature, barometric pressure, relative humidity, wind chill factor, heat index, and dew points. The wind measurement is calculated using six ultrasonic sensors in delta configuration, which means there are no moving parts to wear out or to get caught in the rigging. Unlike mechanical anemometers and weather measuring devices, the WSO200 is not affected by the common issues such as bearing wear, salt and dirt build-up, or bird perching that can all result in failure or data inaccuracy.



Maretron WSO200 Ultrasonic Wind and Weather Station Datasheet (WSO200_Datasheet.pdf, 398 Kb) [Download]
