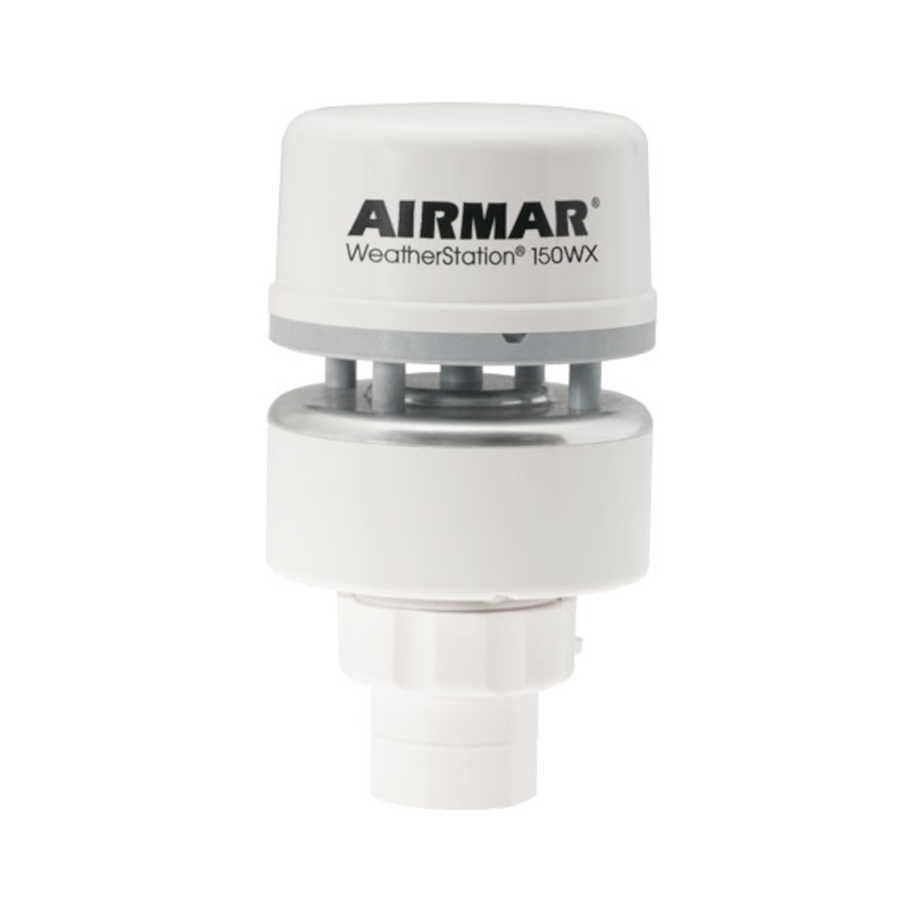

Airmar 150WX NMEA 0183 / 2000® WeatherStation® - (No Relative Humidity) - WS-150WX
NOTE: The Airmar WeatherStations do not come with a cable in the box. The cable needs to be ordered as an option. See the link below.
Model 44-833-1-01
Airmar WeatherStation Cables and Accessories

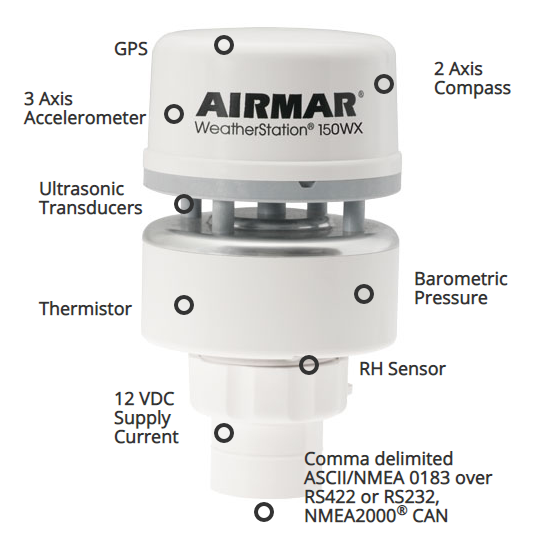

Features

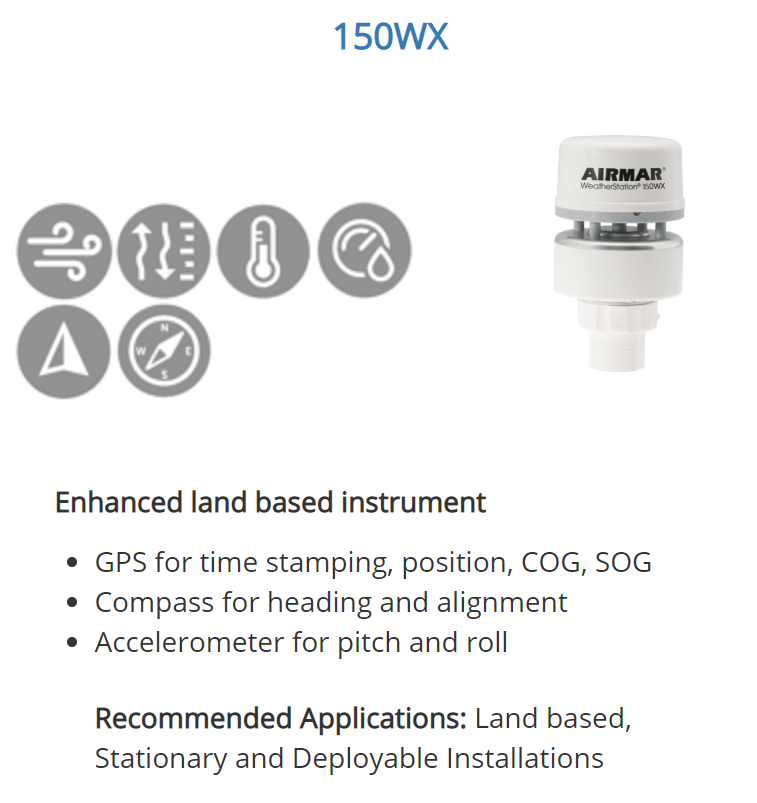

The model 150WX is AIRMAR’s solution for stationary, deployable, and mobile land based weather monitoring applications. Feature rich, and encased in a durable, rugged, small footprint that is IPX4 or IPX6 rated has enabled the model 150WX to be successfully deployed as an integral component for numerous stationary and deployable solutions, most notably the JBTDS HazMat program. (NOTE: The model 150WX with built-in GPS and electronic compass is often the model of choice for portable deployable solutions and land based stationary applications based on its GPS position and time stamping functionality and compass heading which self-aligns to North. Therefore orienting the sensor to North is not required.)
The model 150WX calculates the theoretical wind speed and direction based upon the apparent wind, speed of the vehicle/vessel, and vehicle/vessel heading. Theoretical wind speed and direction is significant for numerous applications and is often mission-critical. The WeatherStation 150WX has been integrated into a mobile agriculture OEM platform and enabled several mobile agriculture after-market solution providers to enhance their solutions.
- Apparent and theoretical wind speed and direction
- Barometric pressure
- Air and wind chill temperature
- Relative humidity (field serviceable option)
- Calculated dew point and heat index
- GPS position, speed over ground, course over ground
- Two-axis solid-state compass
- Three-axis accelerometer – pitch & roll
- IPX4 with the RH option
- IPX6 without the RH option
- Output: Via a single cable (various lengths available)
- NMEA 0183/ASCII Serial protocol over RS232 interface and NMEA2000® protocol over CAN
- NMEA 0183/ASCII Serial protocol over RS-422 standard interface and NMEA2000® protocol over CAN
Specifications
- Wind Speed
- Range: 0-40 m/s
- Accuracy: 5% @ 10 m/s (@4 angles)
- Resolution: 0.1 m/s
- Units: m/s
- Calculations: User configurable damping
- Wind Direction
- Range: 0° to 359.9°
- Accuracy: ±3° @ 10 m/s
- Resolution: 0.1°
- Calculations: User configurable damping
- Air Temperature
- Range: -40° to 80°C
- Resolution: 0.1
- Units: °C
- Relative Humidity
- Range: 0-100% RH
- Accuracy: ±5% RH @ 0 to 90% RH @ 20°C
- Resolution: 0.1% RH
- Barometric Pressure
- Range: 300 to 1100 hPa
- Accuracy: ±0.5 hPa @ 25°C (or better)
- Resolution: 0.1 hPa
- Two Axis Compass
- Range: 0 to 359.9°
- Accuracy: 1° RMS when level
- Resolution: 0.1°
- Pitch & Roll
- Measurement Type: MEMS
- Range: 50°
- Accuracy: ±1° in range of ±30°
- Resolution: 0.1°
- Units: Degrees
- GPS Position Accuracy: 3 m (10') CEP
- Operating Temperature Range: -25°C to 55°C
- Power
- Supply Voltage: 9 VDC to 40 VDC
- Supply Current (@ 12 VDC): <75 mA (<0.9 W), LEN 2 — 150WX
- Output Rate: User specified, 0.1 seconds – fastest interval
- Weight: 300 grams (0.8 lb)
- Communications
- Available Hardware Interfaces: Serial RS232, Serial RS422, CAN
- Available Protocols: Comma delimited ASCII, NMEA 0183, NMEA2000®
- Mounting Thread Size on Base: Standard 1”-14 UNS (3/4” NPT optional)
- Certifications and Standards: CE, IPX6 (Relative Humidity/IPX4), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN15014982
- ±1.1°C @ 20°C
