Save 30%

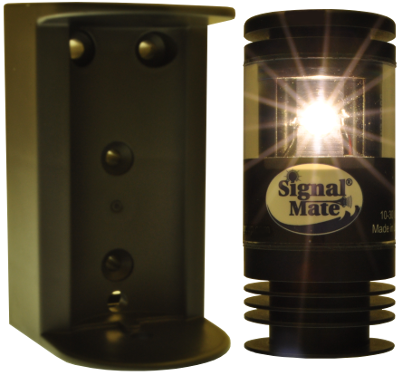

Signal Mate 2 NM 135 Degree White LED Stern Light

Brand: Signal Mate, Condition: New
List price: $170.00
$119.00
You save: $51.00 (30%)
30 days
2NM135W
9 item(s)
+

White LED (135 Degree) Stern Navigation Light. Certified USCG, ABYC-A16, 72 COLREGS. 2 Nautical Mile (2NM) visibility for power, sailboats and commercial vessels up to 50 meters (164 feet). US Coast Guard approved and used by USCG and other Military vessels since 2006. Rugged & waterproof. Mounting bracket with termination area (BRKTTERM) included.

SPECIFICATIONS:

Visibility: 2NM Stern LED Navigation Light
Model #: 2NM135W
Certified: USCG Certified, ABYC A-16, 72 COLREGS
Boat type: Commercial, power, sailboat vessels to 50 meters (164 feet).
Horizontal Viewing Angle: 135 degrees
Voltage Range: 10-30 VDC  Current Draw: 0.100 amps at 12 VDC
Protection: Polarity & 1500 watt surge
LED: High Brightness, 50,000 hours     LEDs: 1   Watts: 1   Color: Red
Led Driver: Constant Current, Varying Voltage    EMI: Passive filtering.
Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
Wiring: 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
Installation: 2 wire
Durability: Water & Vibration proof
Dimensions:  Height 3.25” x 1.5” Diameter  Weight: 6.4 oz
Mounting: ¼” x 20 female threads on bottom of light for mounting.
Bracket Included: BRKTERM with wire termination area in rear of fixture.
Optional:  360 bracket BRKT360. Pole Adapters: 1 inch PADPT1; .75 inch PADPT75
Warranty: 5 Year Limited Warranty covering materials and workmanship.
Made in USA

Drawings

Specifications

Owners Manual

Navigation Light Bracket Guide
