ShipModul MiniPlex 3 PRO - 1138

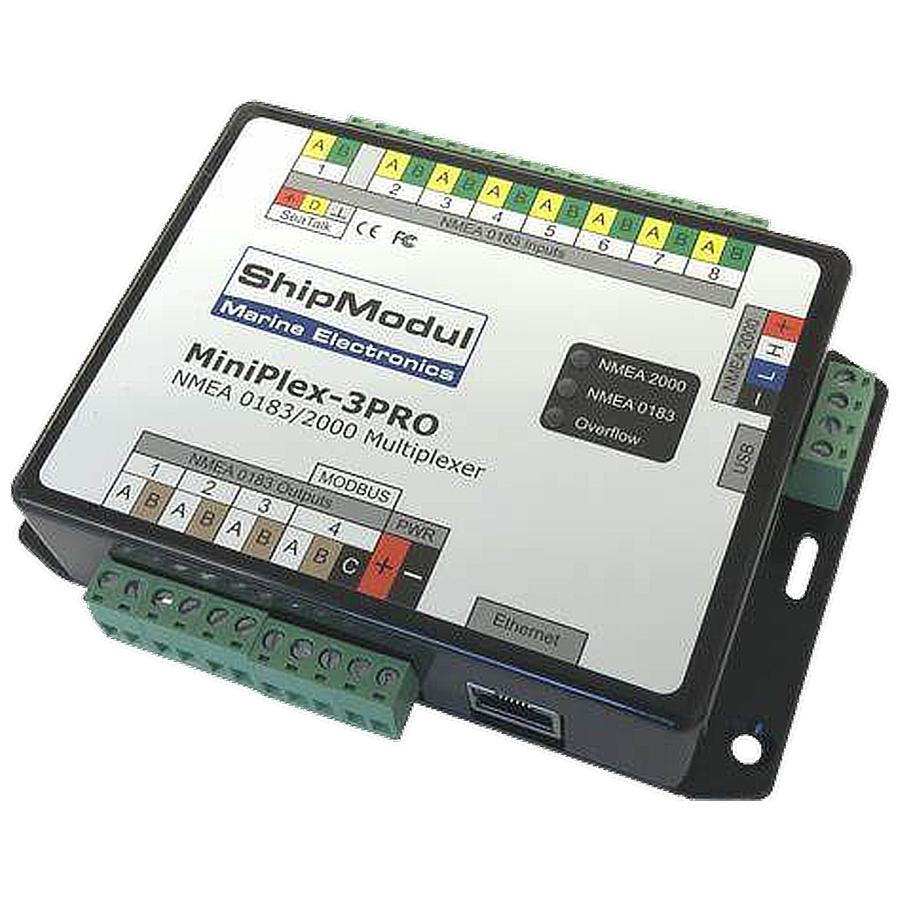

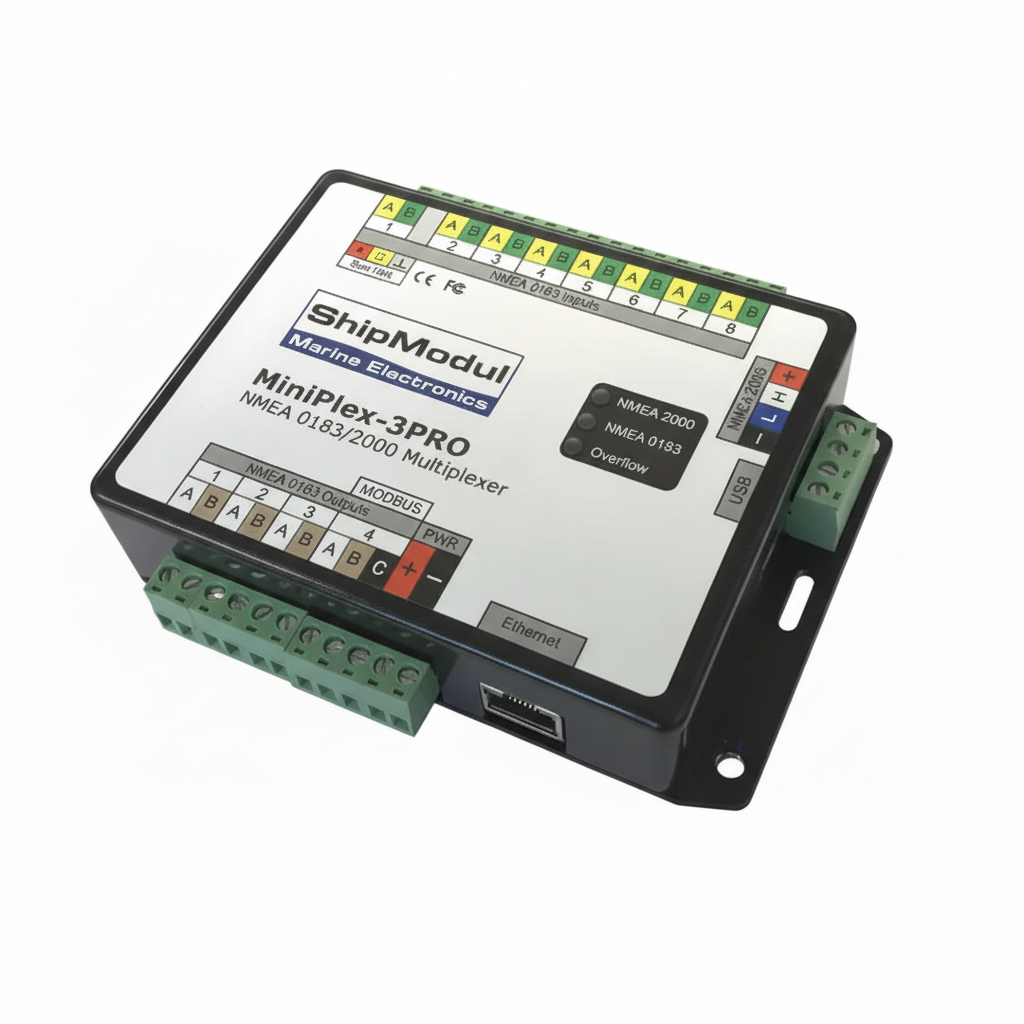

The MiniPlex-3PRO is an advanced multiplexer which combines NMEA 0183 data from multiple sources into one stream. Its gateway function provides conversion between NMEA 0183 and NMEA 2000 in both directions.

It also has four NMEA 0183 outputs and an Ethernet port, and received NMEA 0183 sentences can be individually be routed to each of these outputs.

The Ethernet port is bi-directional, so it can transmit NMEA 0183 data onto an Ethernet network and at the same time, it can receive NMEA 0183 data to be routed to one or both NMEA 0183 outputs. Thus, NMEA 0183 data can be distributed to multiple devices connected to the network.

Communication speeds up to 115200 baud are supported.

Input 1 can be set to SeaTalk mode, so it can transmit and receive SeaTalk data. Received SeaTalk data is converted to NMEA 0183 while NMEA 0183 data from any input or Ethernet port can be selectively routed and converted to the SeaTalk port.

All NMEA 0183 inputs, outputs and Ethernet port are galvanically isolated, thus preventing any chance of ground loops.

A comprehensive set of features include routing/filtering of NMEA 0183 sentences, numerous conversions, prioritization of data etc. make the MiniPlex-3E the ultimate solution for any interfacing requirement.

NMEA 2000 Gateway

The MiniPlex-3PRO also serves as a multiple gateway between NMEA 0183 and NMEA 2000. Each NMEA 0183 input is visible on the NMEA 2000 network as an individual Data Source, one for each physical input, conversions and Ethernet port: 10 in total.

Using the Routing Table, data from every possible NMEA 2000 source can be routed to the Ethernet port and/or both NMEA 0183 outputs.

MiniPlex-3PRO Technical specifications
Supply voltage: 8-35 VDC, protected against reversed polarity
Current consumption: 120 mA (200 mA max. with fully loaded talker ports)
Host interface: 10BASE-T/100BASE-TX Ethernet
Supported protocols: TCP or UDP, port 10110 for NMEA communication
TCP, port 10110 for firmware updates
TCP and UDP, port 30718 for network configuration
ARP, ICMP and DHCP for network management
Inputs: 8 x NMEA 0183/RS422, galvanically isolated
In 1 can be set to SeaTalk mode
Input resistance: > 1.4 kOhm
Input current: 0.5 mA @ 2 V
3.0 mA @ 5 V
7.1 mA @ 10 V
Outputs: 4 x NMEA 0183/RS422, galvanically isolated
Out 4 can be switched to RS485/Modbus-RTU
Max ouput current: 20 mA @ > 2 V
Routing table size: 50 sentence types
Priority table size: 50 sentence types
Speed NMEA 0183 inputs: 4800 - 115200 baud
Speed NMEA 0183 Outputs: 4800 - 115200 baud
Indicators: Overflow and Data
Housing: Flame retardant ABS
Dimensions: 146 x 94 x 34 mm
NMEA 2000
Manufacturer Code: 595
Product Code: 22615
LEN: 1
Connector: 4-pole screw terminal



Brand: ShipModul
Country of Origin: Netherlands
Exterior Color: Black
Model or Series: N2K Micro
