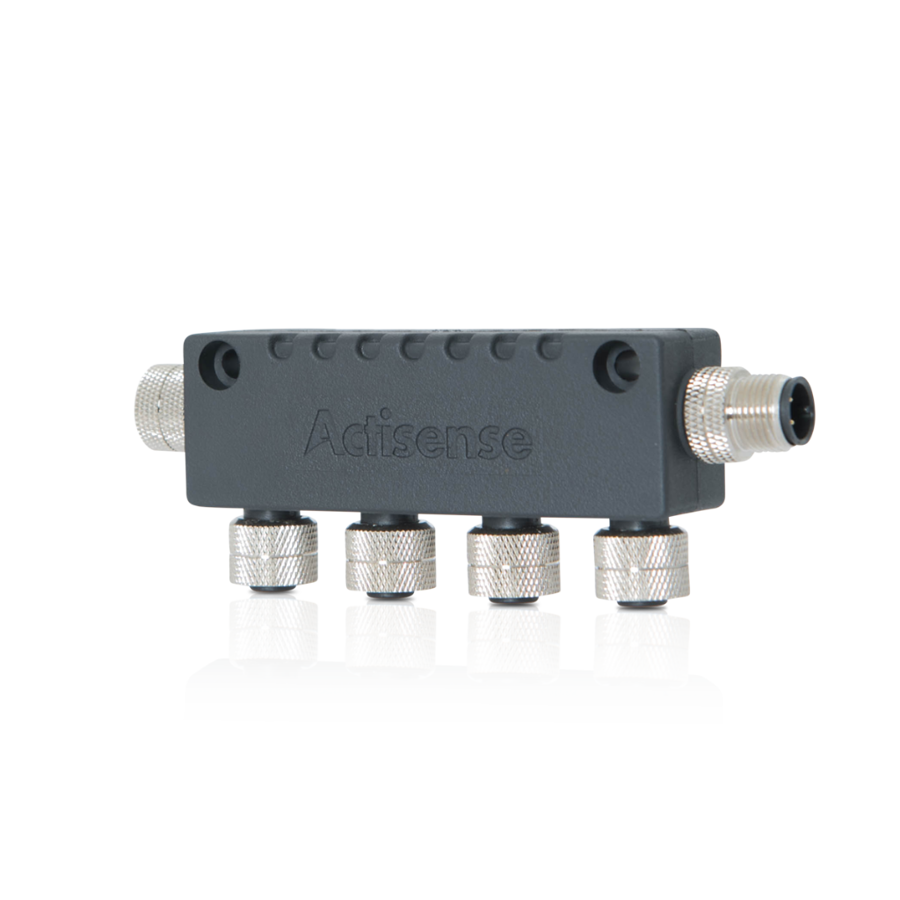

A2K-4WT Actisense NMEA 2000® 4 Way Multidrop T Piece: Overview
The Actisense NMEA 2000® 4 Way Multidrop T Piece is for use where a multiple drop or ‘ports’ are required from the NMEA 2000® backbone to connect other devices.
With five female and one male connector, the A2K-4WT can be easily connected to Actisense NMEA 2000® micro cable assemblies, available in various lengths with UL certified cable for unbeatable quality.
All Actisense connectors follow the DeviceNet® standard.
| Parameter | Description |
|---|---|
| Electrical | |
| Rated Current | 4 A |
| Rated Voltage | 60 V (AC/DC) |
| Mechanical | |
| Male Contact | Brass, gold plated |
| Female Contact | Phosphor bronze, gold plated |
| Contact Carrier | PBT, black |
| Contact Polarization | Standard M12 - "A" - Polarization |
| Mating Thread | M12 |
| Screw Cap | Brass, nickel plated |
| O-Ring Seal | Rubber |
| Housing | TPU, flame retardant to UL94-V0 |
| Weight | 105g |
| Approvals and Certifications | |
| Protection | IP67 (when mated) |
| Operating Temperature | - 20°C to + 90°C |
| Storage Temperature | - 40°C to + 85°C |
| NMEA 2000 Pending | |
| RoHs Compliant |
