Airmar NMEA 0183/2000 Marine Based WeatherStation (no Relative Humidity) - WS-220WX
Model 44-854-1-01
Airmar WeatherStation Cables and Accessories
Note: There is no cable included with the WeatherStation

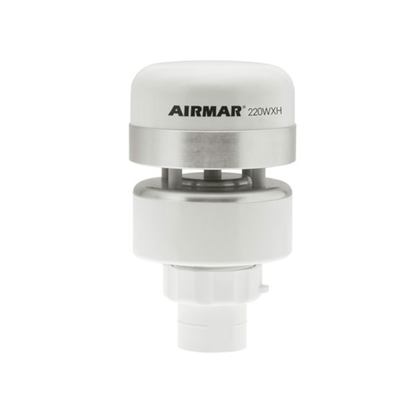

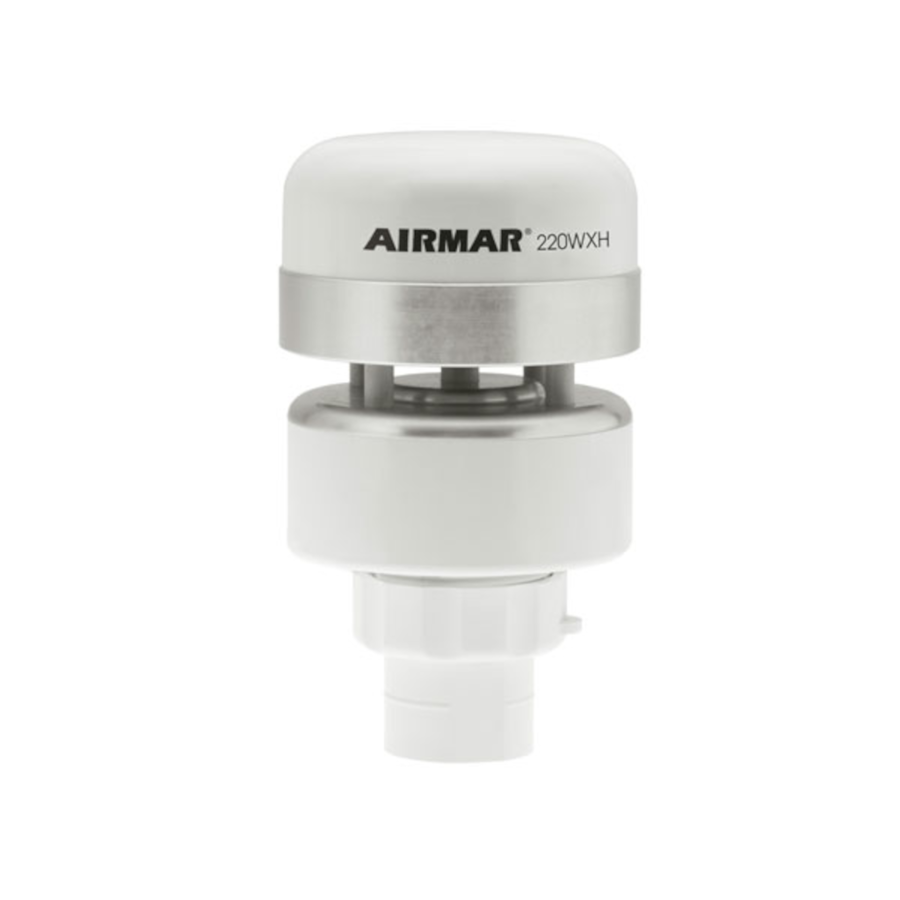

Heater for Commercial Fishing in Ice-prone Areas
The patented 220WXH is Airmar’s choice for commercial-fishing, weather-monitoring applications in ice-prone areas. Designed with a highly effective, thermostatically controlled, heating system, it operates effectively in cold climates. Feature rich in a durable, rugged, small-footprint housing that is IPX4 rated, the 220WXH calculates the theoretical wind speed and direction based upon the apparent wind, speed of the vessel, and vessel heading.
The 220WXH has an internal 10 Hz GPS and three-axis electronic compass. These sensors gives heading, position, speed-over-ground, and course-over-ground functionality that is required for theoretical wind-data processing and mobile applications. A 3D compass with dynamic stabilization provided by the three-axis rate gyro enhances the rate-of-turn data.
Features
- Apparent and theoretical wind speed and direction
- Barometric pressure
- Air and wind chill temperature
- Relative humidity (field serviceable option)
- GPS position, speed over ground, course over ground
- Three-axis solid-state compass with dynamic stabilization
- Three-axis rate gyro – rate of turn
- Three-axis accelerometer – best-in-class pitch & roll performance
- Output: Via a single cable (various lengths available)
- NMEA 0183/ASCII Serial protocol over RS232 interface and NMEA2000® protocol over CAN
- NMEA 0183/ASCII Serial protocol over RS-422 standard interface and NMEA2000® protocol over CAN
Specifications
- Wind Speed
- Range: 0 knots to 78 knots
- Accuracy: 5% @ 19 knots (@4 angles)
- Resolution: 0.1 knots
- Units: knots
- Calculations: User configurable damping
- Wind Direction
- Range: 0° to 359.9°
- Accuracy: ±3° @ 10 m/s
- Resolution: 0.1°
- Calculations: User configurable damping
- Air Temperature
- Range: -40° to 80°C
- Accuracy: ±1.1°C @ 20°C
- Resolution: 0.1
- Units: °C
- Relative Humidity (Not on this WeatherStation)
- Range: 0-100% RH
- Accuracy: ±5% RH @ 0 to 90% RH @ 20°C
- Resolution: 0.1% RH
- Barometric Pressure
- Range: 300 to 1100 hPa
- Accuracy: ±0.5 hPa @ 25°C (or better)
- Resolution: 0.1 hPa
- Three Axis Compass
- Range: 0 to 359.9°
- Accuracy:1° static heading accuracy; 2° dynamic heading accuracy
- Resolution: 0.1°
- Pitch & Roll
- Measurement Type: MEMS
- Range: 50°
- Accuracy: ±1° in range of ±30°
- Resolution: 0.1°
- Units: Degrees
- GPS Position Accuracy: 3 m (10') CEP
- Operating Temperature Range: -25°C to 55°C
- Power
- Supply Voltage: 9 VDC to 40 VDC
- Supply Current (@ 12 VDC): <75 mA (<0.9 W), LEN 2 — 220WX
- Output Rate: User specified, 0.1 seconds – fastest interval
- Weight: 300 grams (0.8 lb)
- Communications
- Available Hardware Interfaces: Serial RS232, Serial RS422, CAN
- Available Protocols: Comma delimited ASCII, NMEA 0183, NMEA2000®

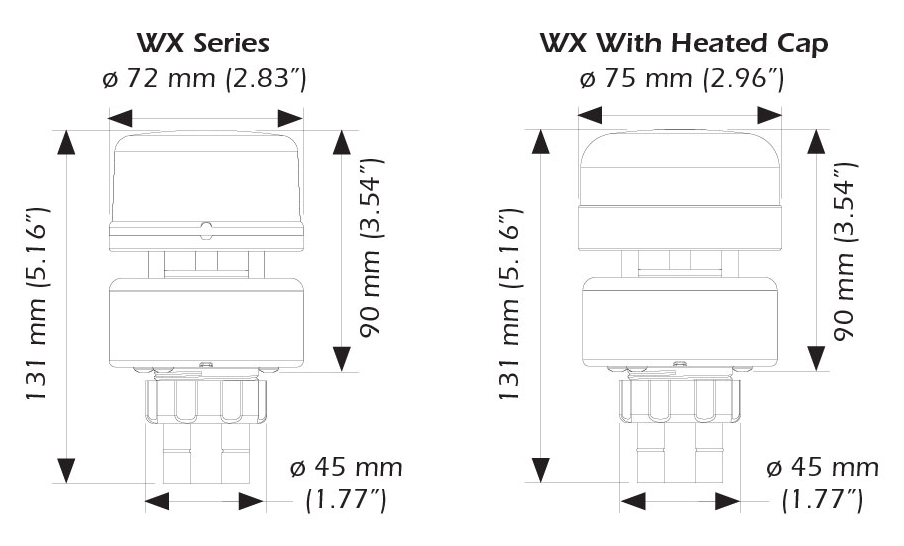

- Mounting Thread Size on Base: Standard 1”-14 UNS (3/4” NPT optional)
- Certifications and Standards: CE, IPX6 (Relative Humidity/IPX4), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN15014982
