Lanlink NMEA 0183 To Ethernet Gateway
More and more boats now have a wireless router fitted or utilise devices like our 4G Connect for internet connectivity.

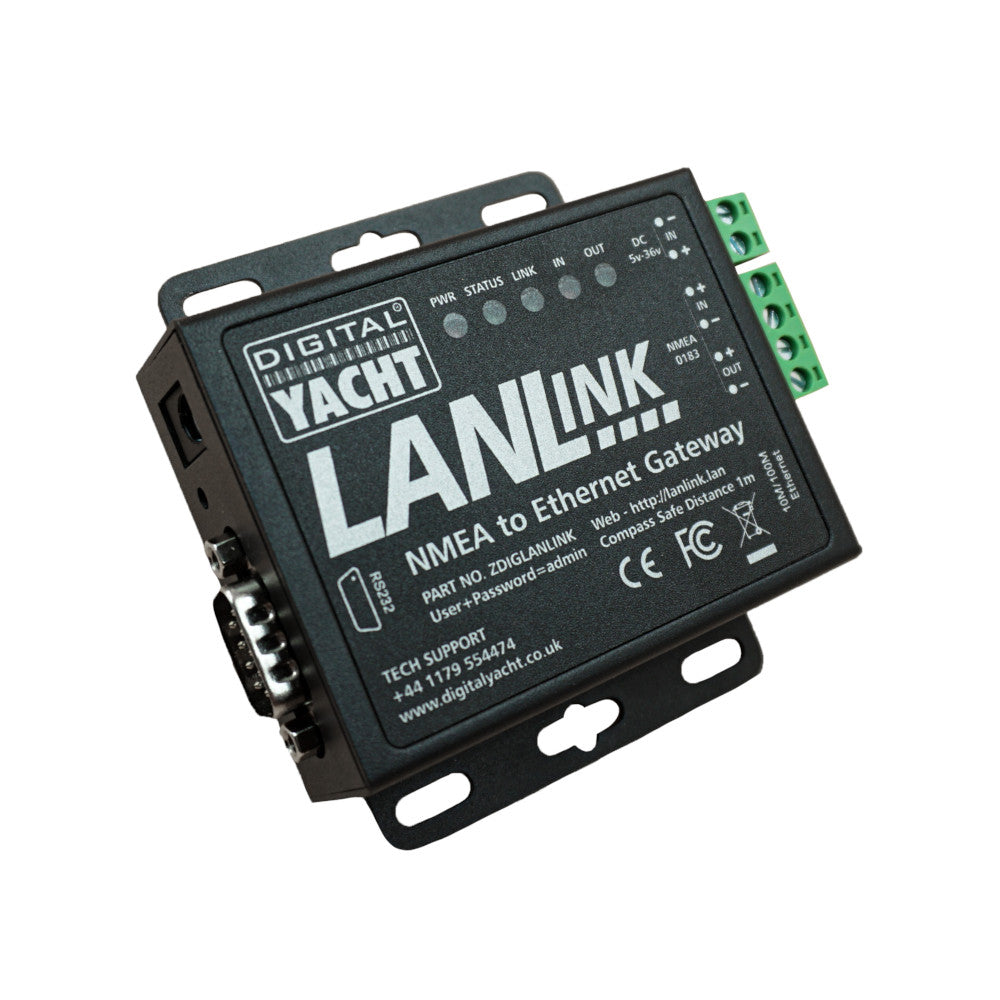

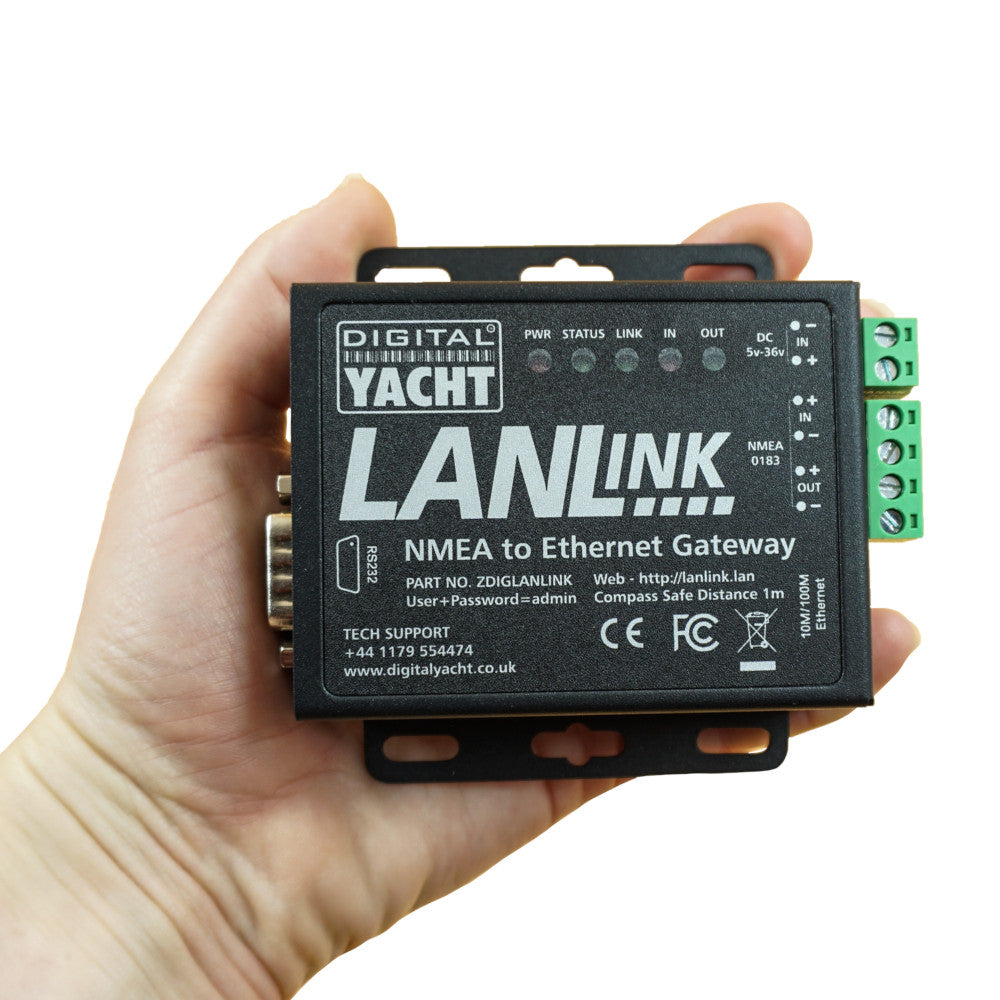

LANLink is a NMEA to ethernet gateway which enables the boat’s NMEA data to integrate onto the router network - allowing connected devices and apps to take advantage of the data. LANLink is available in two versions suitable for NMEA 0183 and NMEA 2000 respectively. It features an easy to use web interface allowing any device with a browser to configure NMEA baud rates and IP/Port information. It can support multiple TCP/IP connections and is bi-directional.
Once connected to the onboard network via a simple CAT 5/6 patch cable, you can setup apps like TZ iBoat, iNavX, NavLink, iSailor, Imray, Weather 4D etc by simply entering the IP address and port for streaming NMEA data.
Features:
- Available in two versions ZDIGLANLINK – NMEA0183 TO ETHERNET GATEWAY, ZDIGLANLINKN2K – NMEA 2000 TO ETHERNET GATEWAY
- 12/24v DC low power operation
- Connects to router or devices via simple RJ45 Cat 5/6 patch cable connection

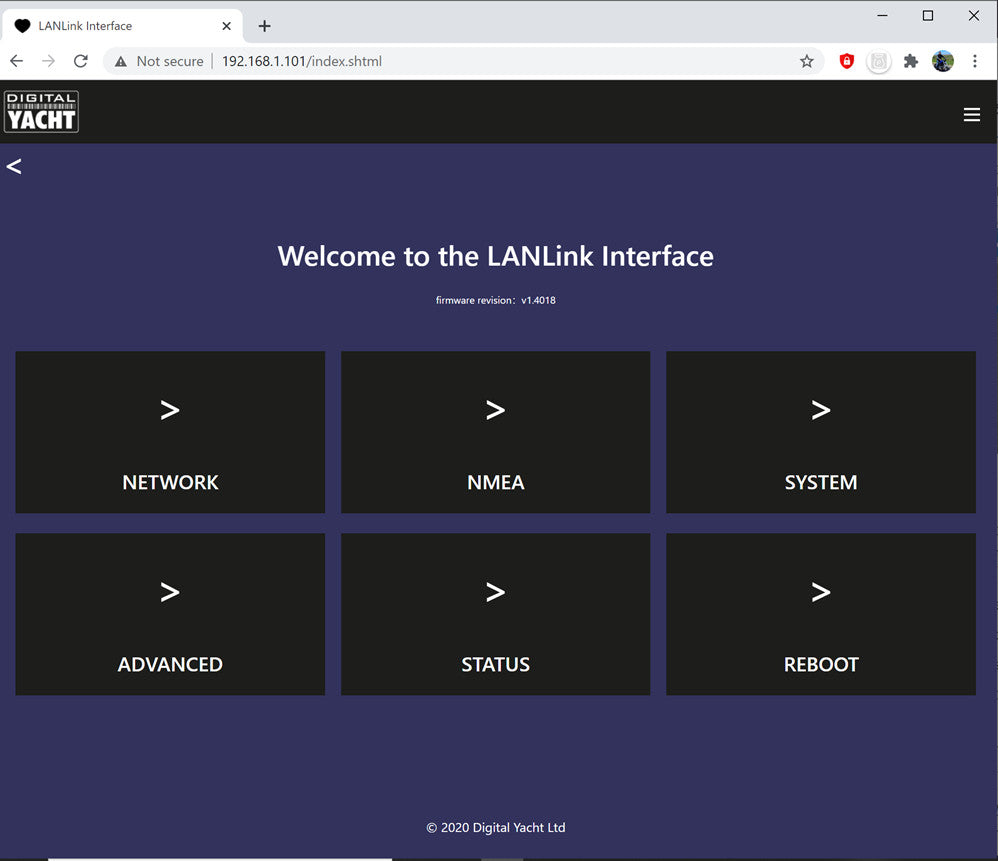

- Web user interface for easy setup from connected device via browser TCP/IP or UDP connection modes – support for up to 5 connected devices with TCP/IP
- Bi-Directional NMEA 2000 variant can offer raw mode with encapsulated PGNs or conversion mode (for apps) supporting AIS, instruments and GPS RS232 port for PC apps too
- Status indicators for power, data in-out, network link and server status
Electrical:
- Power 10-35V DC (Consumption approx. 50mA at 12V DC)
- Network Port Ethernet RJ45 10/100MB IP Mode Static or DHCP Operating Mode (*TCP/IP or UDP Support for up to 5 connected devices in TCP/IP mode * Recommended mode of operation)
- NMEA Input Configurable 4800 or 38400 baud (NMEA 0183)
- NMEA 2000 option via iKonvert gateway
- Operating temp -25 to +70 C
- LED Indicators Power, Link, Data In, Data Out, Status Options
- RS232 connectivity (non concurrent with NMEA)
