Maretron MPower® VMM6 Series Contura® Digital Switch Module, 6 Rocker - A3801-2
| A3801-2 | Contura II Actuators with right switch 3-position and blue LEDs |
The VMM-Series is a sealed multiplexed, digital switch module featuring the Carling V-Series Contura® rocker switches. Well known for their cutting-edge design, high quality, maximum performance and unmatched reliability, the VMM-Series reduces the complexity and cost of traditional wiring harnesses, increases product life and reliability, and reduces installation time. Available in six simple configurations, VMM6 is a plug-and-play solution that delivers switching technology at a very attractive price point.
Available in four simple configurations, the VMM6 is an out-of-the box plug-and-play solution that delivers switching technology at a very attractive price point. In addition, for customers that want the option to source aftermarket actuators, we offer two configurations of the VMM6 without actuators (Part numbers A3801-5, A3801-6).
The VMM6 is sold off-the-shelf in the following configurations. Each configuration includes one 0.2m VMM to NMEA 2000® adapter cable.
| Part No | Description |
|---|---|
| A3801-1 | Contura II Actuators with all positions momentary ON and blue LEDs |
| A3801-2 | Contura II Actuators with right switch 3-position and blue LEDs |
| A3801-3 | Contura V Actuators with all positions momentary ON and blue LEDs |
| A3801-4 | Contura V Actuators with right switch 3-position and blue LEDs |
| A3801-5 | No Actuators with all positions momentary ON and blue LEDs |
| A3801-6 | No Actuators with right switch 3-position and blue LEDs |
Other configurations are availiable on request with bulk puchase, including not supplying the adapter cable for builders who wish to do the cable harnesses themselves. Consult the factory for additional options and minimum quantities.
Features
- NMEA 2000® CAN Protocol
- IP68 Sealing Protection with plug installed in unused connector
- Configurable

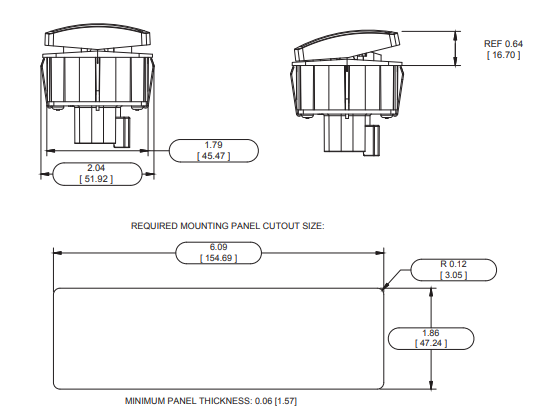

- Horizontal or Vertical Mounting Options
- Aftermarket Actuators readily available with a wide selection of Legends
- LED feedback of circuit state
- Low Current Switching
- Tactile and Audible Feedback
Applications
- Control of navigation lights
- Control of boarding lights
- Control of area lights

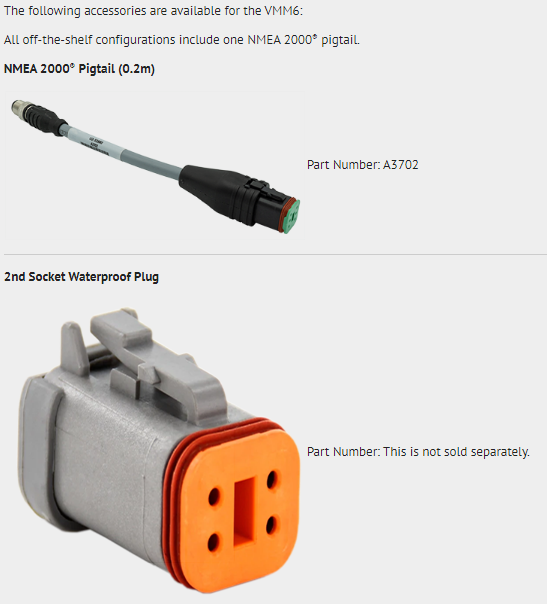

The price includes one 0.2m NMEA 2000 Adapter Cable plus one waterproof plug for the spare socket.
* VMM6 requires configuration using Maretron USB100 or IPG100 plus PC running N2KAnalyzer V3.
