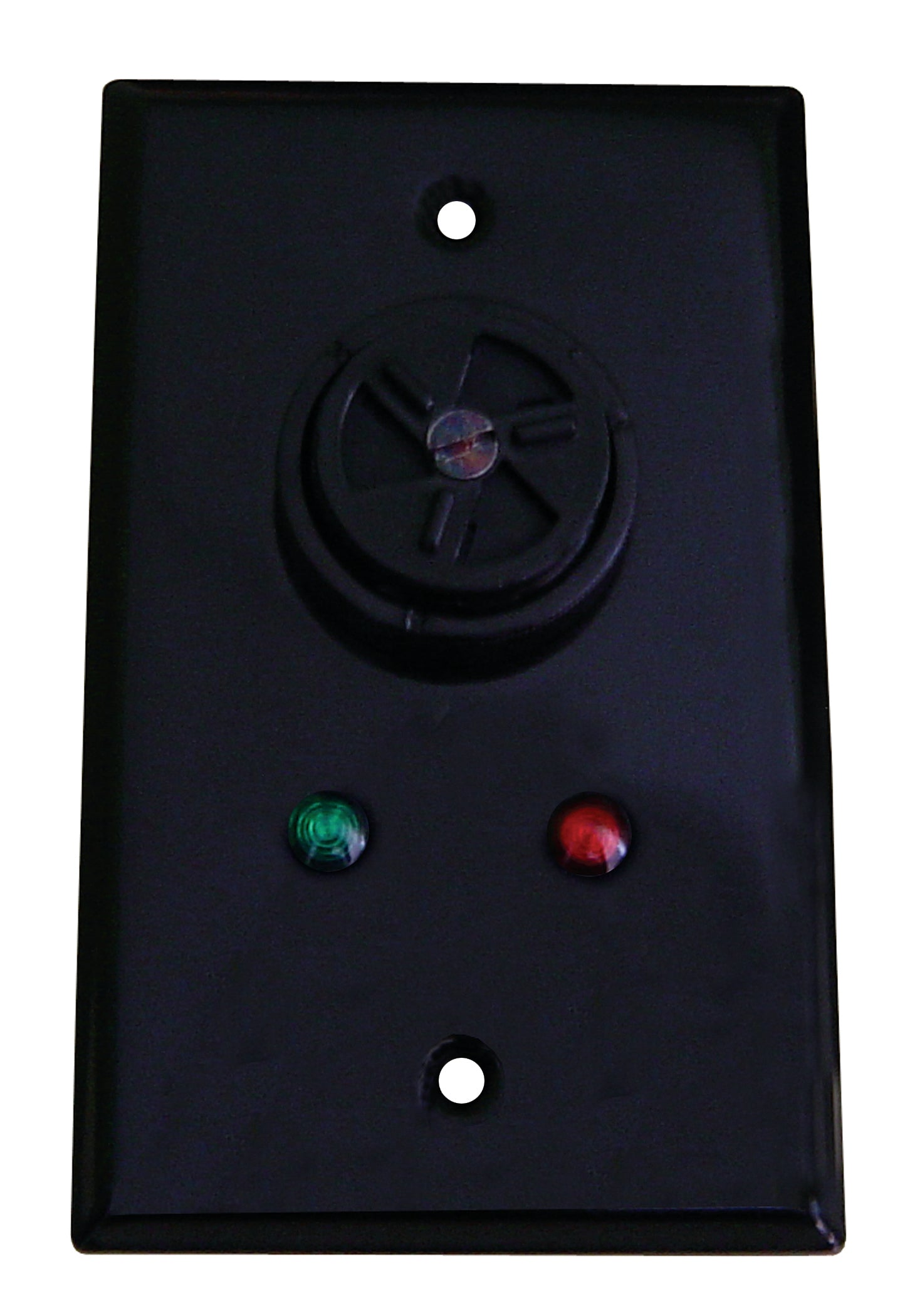

Maretron NMEA 2000 Alarm Module ALM100-01
Maretron’s Alarm Module generates visual and audible alerts for any monitored condition. The Alarm Module includes an extremely loud 105 dB SPL Piezoelectric sounder, along with a red high-brightness LED to indicate an alarm condition. A second green LED incidates that the Alarm Module is powered and ready to be triggered. The audible alarm can sound any one of 32 distinct pre-programmed patterns to indicate different alerts. The Alarm Module can be triggered by alarms generated by Maretron’s N2KView® Vessel Monitoring System, or by Maretron’s DSM250 Color Graphics Display. The Alarm Module mounts in a standard electric box or can be flush mounted on any surface. Completely waterproof, the Alarm Module can be mounted inside or outside the vessel.
• NMEA 2000® Network Interface
• Super loud 105dB audible alarm
• Bright Red LED visual alarm
• Green LED status indicator
• Mounts in standard electrical wall box or flush mount directly in wall
• 32 selectable alarm patterns
• Waterproof - Can be mounted indoors or outdoors
In the box:
1 – ALM100 Alarm Module
1 – ALM100 Black Faceplate
2 – ALM100 Mounting Screws
2 – Faceplate Mounting Screws
1 – Faceplate Gasket
1 – Sounder Volume Control Baffle Plate
1 – Sounder Volume Control Shutter
1 – Screw for Sounder Volume Control
1 – Sounder Collar
1 – Sounder Gasket
1 – ALM100 User’s Manual
1 – Warranty Registration Card
Options:
CP-BK-ALM100 ALM100 Black Cover Plate
CP-WH-ALM100 ALM100 White Cover Plate
ALM100 NMEA 2000® Alarm Module User's Manual
