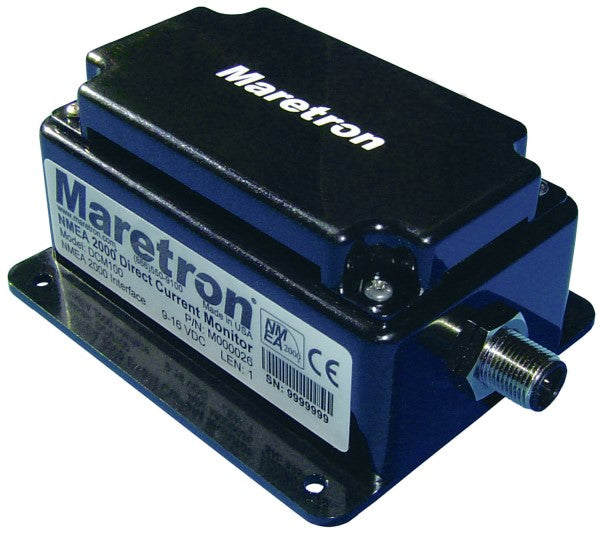

Maretron NMEA 2000 Direct Current (DC) Monitor DCM100-01
Maretron’s DCM100 DC Monitor is an advanced electronic monitoring device used to measure the voltage and current of any direct current (DC) power source or load. Examples of DC power sources that can be monitored with the DCM100 include batteries, alternators, solar panels, and wind generators. The DCM100 can also be used to monitor DC loads like inverters, windlasses, DC refrigerators, or any DC branch circuit.
When the DCM100 is used to monitor batteries, sophisticated circuitry and software algorithms monitor battery temperature, load current, charging current and terminal voltage to precisely compute battery state of charge, and time remaining. To measure current, the DCM100 uses an included state-of-the-art Hall effect current sensor which simply slips over the wire – you don’t have to break connections or install connectors as you do with inline shunts used by other solutions.
Best of all, the DCM100 is NMEA 2000® certified so you can view any and all DC information anywhere on the vessel using a compatible NMEA 2000® display. The DCM100 is a key component of Maretron’s N2KView® vessel monitoring and control system.
- Battery Voltage
- Battery Current
- Ripple Voltage
- Battery Case Temperature
- State of Charge
- Time Remaining
- Charge Efficiency Factor
In the Box
1 – DCM100 – DC Monitor
1 – DC Current Sensor with 5 ft. long cable (Part # LEMHTA200-S) (outer cable covering grey)
1 – Battery Temperature Sensor with 5 ft. long cable (Part # TR3K) (outer cable covering grey)
1 – Battery Voltage Sense Cable, 5 ft. long (Part # FC01) (outer cable covering white)
1 – Power Cable, 5 ft. long (Part # FC01) (outer cable covering white)
1 – Parts Bag containing 4 Stainless Steel Mounting Screws
1 – DCM100 User’s Manual
1 – Warranty Registration Card
Accessories
PART NUMBER DESCRIPTION
FC01 DCM100Battery Harness with Fuse
LEMHTA200-S200 Amp Current Transducer with Cable
LEMHTA400-S400 Amp Current Transducer with Cable
LEMHTA600-S600 Amp Current Transducer with Cable
TR3K DCM100Ring/Under Bolt Temperature Probe
DCM100 DC Monitor User's Manual
