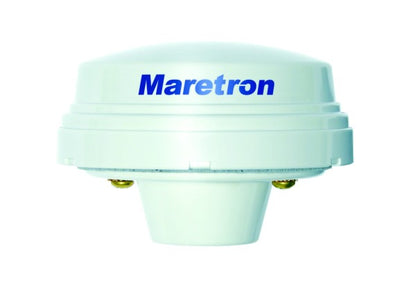

Maretron's GPS200 provides reliable position fixes, compliant and certified to the NMEA 2000® Standard.
The GPS200 automatically decodes GPS correction signals from Satellite Based Augmentation Systems (SBAS) including the North American Wide Area Augmentation System (WAAS), the European Geostationary Navigation Overlay System (EGNOS), or the Asian Multifunctional Transport Satellite-based Augmentation System (MSAS) to provide better than 2.5m accuracy.

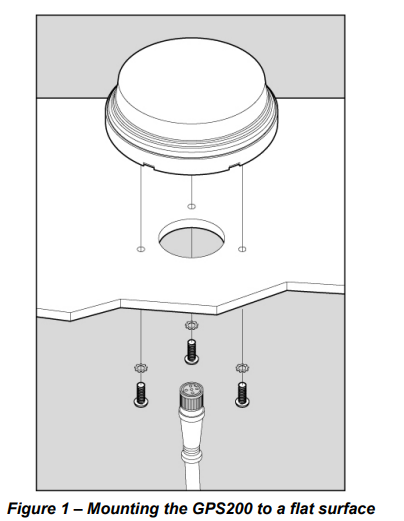

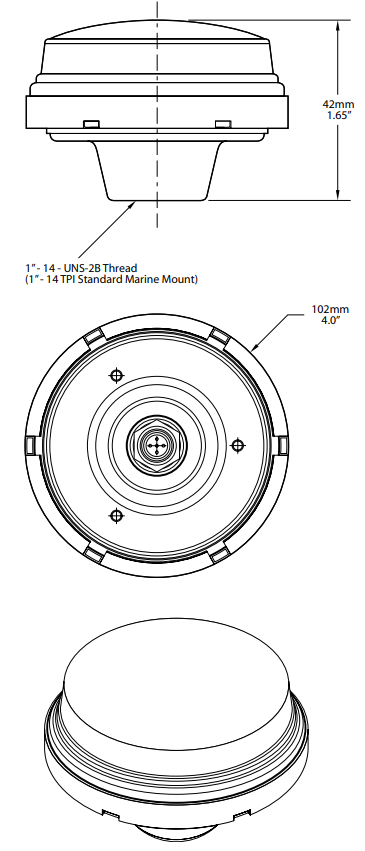

The GPS200 is easily mounted to any 1” standard marine mount with its standard 1”–14 male threads. It can also be mounted directly to a deck, or even (due to it's unprecedented sensitivity) underneath a fibreglass deck.
FEATURES
- Latitude
- Longitude
- Time
- Date
- Course Over Ground
- Speed Over Ground
- Magnetic Variation
- Satellite Status
APPLICATIONS
- Navigation
- Autopilot
- AIS
MOUNTING OPTIONS
- Surface Mount

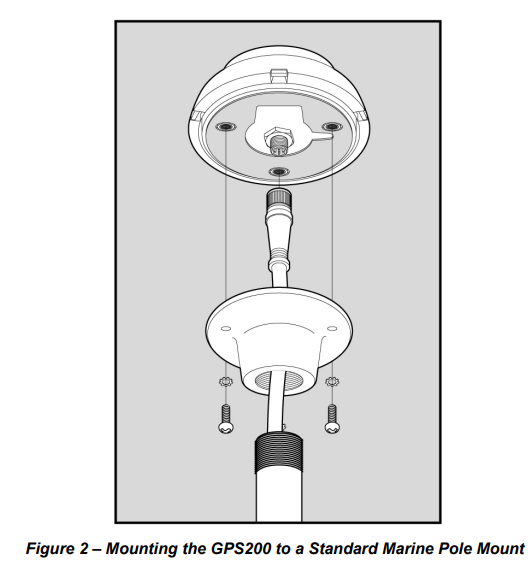

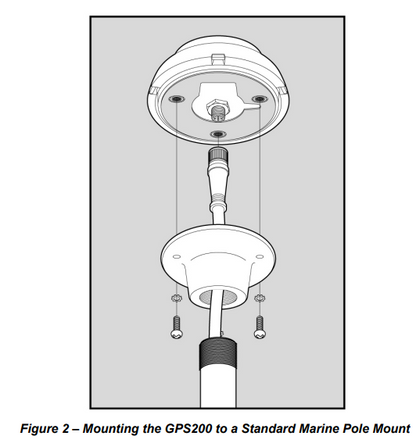

- Pole Mount
GPS200 GPS/WAAS Antenna/Receiver User's Manual (Updated October 09, 2009)
