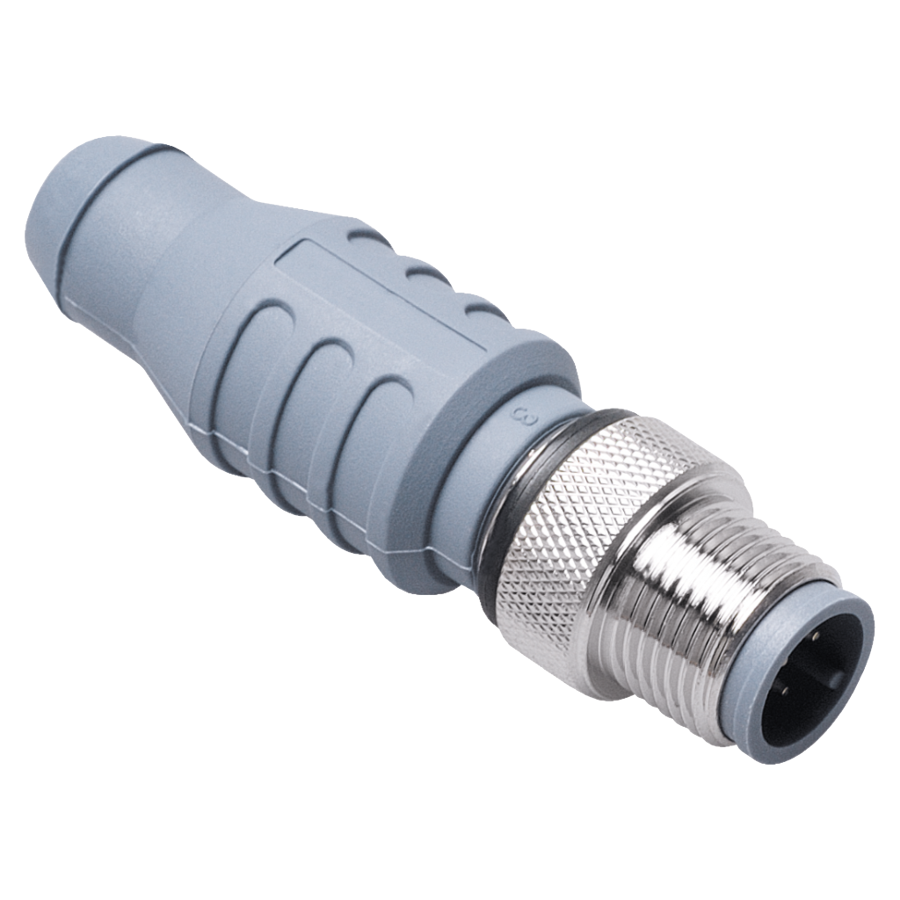

Micro Termination Resistor (Male)
Two termination resistors are required on every NMEA 2000 network, one on each end of the trunk line. Normally, a male termination is used since male pins tend to point back to the power source. In cases where the gender is reversed, a female terminator may be required.
The inline terminator is used where the network is terminated at a product, for example a GPS or weather station at the top of a mast.
• Screw terminal connector for positive connections
• Termination resistors are used to terminate both ends of the trunk line
FEATURES:
- Screw terminal connector for positive connections
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
ELECTRICAL:
- Rated Voltage: 10-30 V DC
- Internal Resistor: 120 Ohms (1/2 W)
ENVIRONMENTAL:
- Protection Class: IEC IP68, NEMA 1,3,4,6P
- APPROVALS NMEA: NMEA 2000® APPROVED
- IEC: IEC 61162-3
