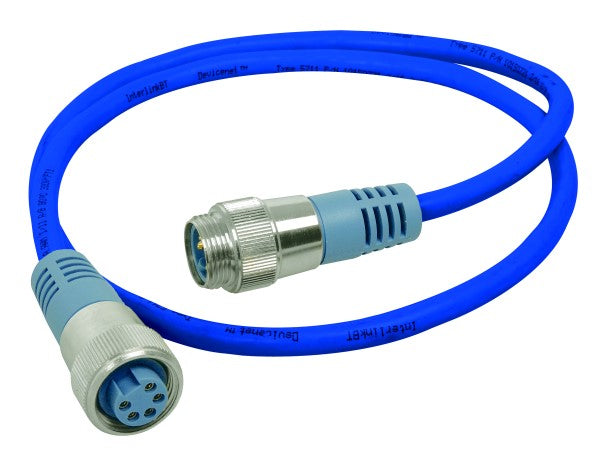

Maretron NMEA 2000 Mini Double-Ended Cordset - M to F - 0.5m (blue) NM-NB1-NF-00.5
Mini Double-Ended Cordset - M to F Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.
Features:
- Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
- Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Connector Outside Diameter: 1.06”
ELECTRICAL:
- Current Rating: 9.0 Amps
- Voltage Rating: 300 V
CABLE:
- Outer Jacket Mat/Color: PVC/Blue
- Conductor Insulation Material: PE (data pair), PVC (power pair)
- Number of Conductors: 2x15 (1.45mm) AWG, 2x18 (1.02mm) AWG, 18 (1.02mm) AWG Drain Wire
- Shielding (3-Levels): Braid (Overall), Foil (Power Pair), Foil (Data Pair)
ENVIRONMENTAL:
- Protection Class: IEC IP67, NEMA 1,3,4,6P
- Temperature Rating: -40°C to 80°C (-40°F to 176°F)
APPROVALS:
- (Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
- (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000® Approved
- IEC: IEC 61162-3
