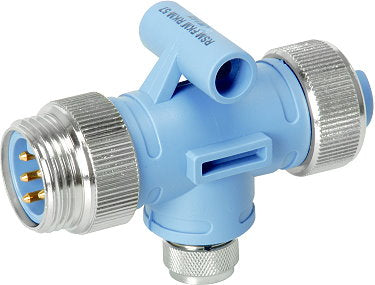

Maretron NMEA 2000 Mini/Micro Tee - Mini Male (left) / Micro Female (bottom) / Mini Female (right) NM-CF-NF

This Tee Reducer is used to tap into the Mini trunk line for adding a Micro drop connection. Mini male/ Mini female/ Micro Female. Gold Contacts for greatest reliability. Keyed connectors for error-free connections.

FEATURES:

Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
Contact Mat/Plating: Brass/Gold
Coupling Nut Mat/Plating: Brass/Nickel

ELECTRICAL:

Rated Current: 4.0 Amps (Micro) 9.0 Amps (Mini)
Rated Voltage: 250 V

ENVIRONMENTAL:

Protection Class: IEC IP67, NEMA 1,3,4,6P
Temperature Range: -40°C to 80°C (-40°F to 176°F)

APPROVALS:

NMEA: NMEA 2000® APPROVED
IEC: IEC 61162-3
