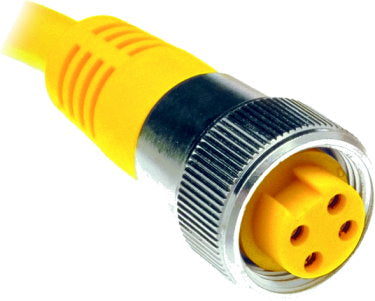

Maretron NMEA 2000 Mini Power Cord - Female to Pigtail - 1 meter NM4P-01
FEATURES
- Molded Body Mat/Color: Thermoplastic PUR/Yellow
- Outer Jacket Mat/Color: PVC/Yellow
- Contact Carrier Mat/Color: Thermoplastic PUR/Yellow
- Contact Mat/Plating: Brass/Gold
- Coupling Nut Mat/Plating: Brass/Nickel
- Conductor Insulation Mat: PVC
ELECTRICAL:
- Conductors: 4x16 (1.29mm) AWG
- Current Rating: 9.0 Amps
- Voltage Rating: 600 V
ENVIRONMENTAL:
- Protection Class: IEC IP67, NEMA 1,3,4,6P
- Temperature Range: -40°C to 105°C (-40°F to 221°F)
APPROVALS:
- NMEA: NMEA 2000® APPROVED
- IEC: IEC 61162-3
