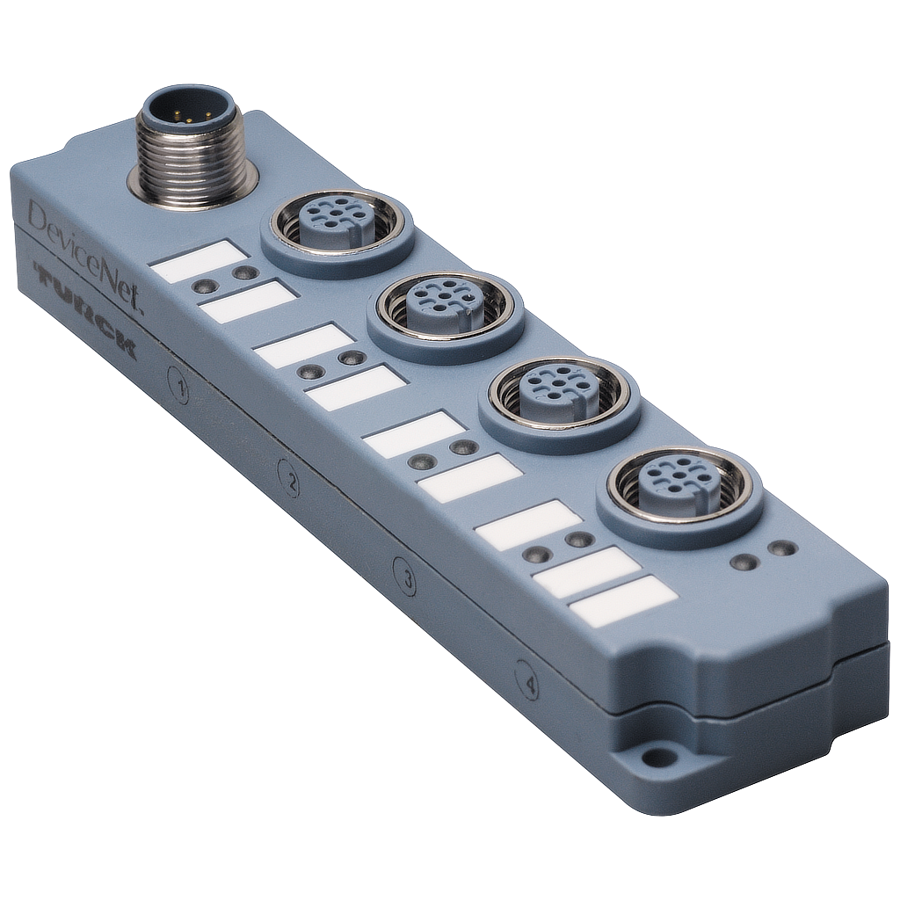

Multiport Box (Micro-Mid Male Homerun / Micro-Mid Female Drop)
Multiport boxes allow several drop cables to be consolidated and connected back to the trunk, which eliminates the need to have numerous tees connected near a single point. Multiport boxes connect back to the trunk through a double-ended cordset and Tee.
- Ideal for consolidating many connections; for example behind dashboards
- NOTE: Requires the purchase of an additional double-ended cordset for connection back to the trunk
FEATURES
- Housing Mat/Color: Nylon/Blue-Gray
- Receptacle Mat/Plating: Brass/Nickel
- Contact Carrier Mat/Color: Nylon/Black
- Contact Mat/Plating: Brass/Gold
ELECTRICAL:
-
Operating Voltage: 250 V 250 V
-
Operating Current: 4.0 Amps
ENVIRONMENTAL:
-
Protection Class: IP67 – when receptacles are covered
-
Operating Temperature: -30°C to 80°C (-22°F to 176°F)
APPROVALS:
- NMEA: NMEA 2000® Approved
- IEC: IEC 61162-3
