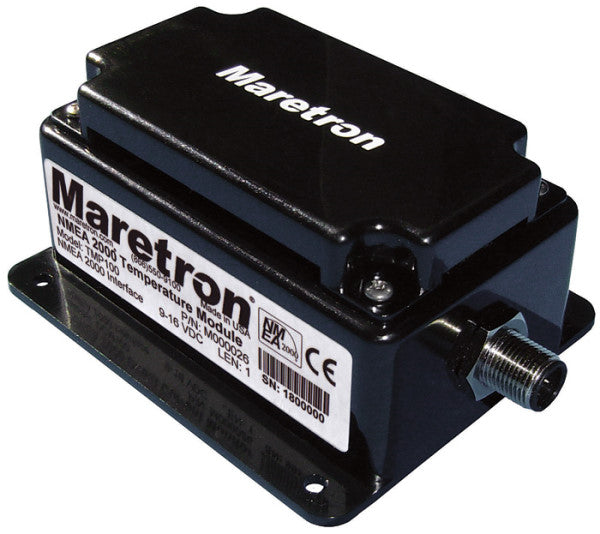

Maretron NMEA 2000 Temperature Module TMP100-01
TMP100 NMEA 2000® Temperature Module User's Manual (Updated July 31, 2009)
Maretron’s TMP100 measures the temperature for up to 6 temperature probes and reports the information over an NMEA 2000® network. The TMP100 supports up to 4 thermistor probes and 2 high temperature thermocouple probes. Optional thermistor probes (-20°C to 80°C or -4°F to 176°F) cover a wide range of applications including cabin air temperature, engine room air temperture, refrigerator/freezer temperature, under bolt temperature (inverters, charges, pumps, motors, etc.), tank temperatures (live well bait, hot water, etc.), and air duct temperatures. The optional thermocouple probes (0°C to 900°C or 32° to 1652°F) are used to measure Exhaust Gas Temperature (EGT) as part of a comprehensive fuel management system.
- Six External Temperature Probes are Measured and Broadcast Over NMEA 2000 Network
- Four Channels for Thermistor Probes and 2 Channels for High Temperature Thermocouple Probes
- Wide Variety of Applications Supported with Optional Temperature Probes
- Cabin Temperature
- Engine Room Temperature
- Under Bolt Temperature (Inverters, Chargers, Pumps, etc.)
- Refrigerator/Freezor Temperature
- Tank Temperatures (Live Well Bait, Hot Water, etc.)
- Air Duct Temperature
- Exhaust Gas Temperature
- Optional Temperature Probes
- Ambient Air Temperature Probe (-20°C to 80°C or -4°F to 176°F)
- Ring Terminal Probe (-20°C to 80°C or -4°F to 176°F)
- Immersion Probe for Tanks or Plenums (-20°C to 80°C or -4°F to 176°F)
- Exhuast Gas Temperature Probe (0°C to 900°C or 32° to 1652°F)
Accessories
TMP100-01 - Temperature Module
TR3K TMP100 - Ring/Under Bolt Temperature Probe
TP-AAP-1 - TMP100 Ambient Air Temperature Probe
TP-IP-1 - TMP100 Immersion (Tanks, Plenums, etc.) Temperature Probe
TP-EGT-1 - TMP100 Exhaust Gas Temperature (EGT) Probe
