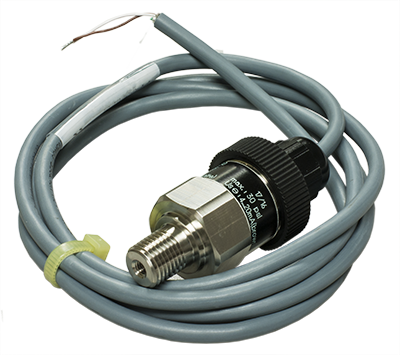

Maretron Pressure Transducer 0 to 1.5 PSI (FPM100 Accessory) PT-0-1.5PSI-01
Maretron Fluid Pressure Sensor Transducers work with the Maretron FMP100 which will adapt up to six pressure transducers to the NMEA 2000 network
Available Models
PT-0-3PSI-01 Pressure Transducer 0 to 3 PSI
PT-0-5PSI-01 Pressure Transducer 0 to 5 PSI
PT-0-10PSI-01 Pressure Transducer 0 to 10 PSI
PT-0-50PSI-01 Pressure Transducer 0 to 50 PSI
PT-0-100PSI-01 Pressure Transducer 0 to 100 PSI
PT-0-500PSI-01 Pressure Transducer 0 to 500 PSI
PT-0-1000PSI-01 Pressure Transducer 0 to 1000 PSI
PT-0-5000PSI-01 Pressure Transducer 0 to 5000 PSI
Maretron pressure transducers are not approved for use with gasoline. If you wish to use the FPM100 to monitor pressures or levels of gasoline, you must obtain a pressure transducer that is approved for use with gasoline.
Note that diesel fuel is lighter than water, and so the maximum tank depth can be increased by about 10% when these sensors are used to measure diesel fuel tanks.
