Oceanic Systems Color Multi-Function Display - 3345
The Oceanic Systems 3345 Colour MultiFunction Display provides a compact and flexible solution to display all the ships
Tanks, DC Sources and AC Sources on a single sunlight readable bright color display.
The 3345 is simply connected to the NMEA2000 network with a single cable and all the NMEA2000 tank senders, battery
monitors and AC source monitors will display their information on the multi page display.

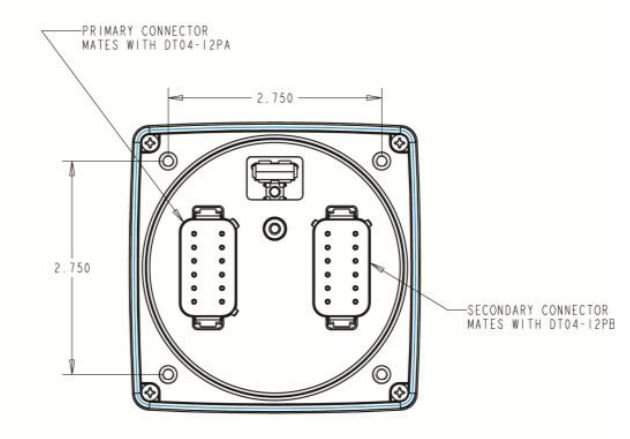

It has a high resolution sunlight readable colour display in a compact 95mm square rugged format. No need to have larger
cumbersome separate displays for all these functions any more. The display screens are user selectable so that the user can mix
the tank sender display to suit their requirements allowing them to choose different tank types on each page of a multipage tank
display.
Each Tank Sender, DC Source Monitor and AC Source Monitor can have a user selectable descriptive name to make
identification easier.
Each Tank Display will show tank level and tank VOLUME where this information is available (i.e. From Offshore Systems Tank
Senders)
It is certified to the NMEA2000 network standard and draws just 160mAcurrent from the network.
It comes with a detailed User Manual that identifies what NMEA2000 data can be displayed and how to select that data.
The 3340 is simple. powerful, reliable and very easy to install and use.
Provides Colour Display for all the following devices on an NMEA2000 network:
- Up to 16 Fuel Tanks
- Up to 16 Fresh Water Tanks
- Up to 16 Grey Water Tanks
- Up to 16 Black Water Tanks
- Up to 16 Oil Tanks
- Up to 16 DC Sources such as Battery Banks, Solar Cells and ?Wind Generators
- Up to 16 AC Sources such as Generators, Shore power and AC Bus Bars
- Compact and Robust Design
- User selected displays
- Low Cost
- NMEA2000 Certified
In the box:
1 x 3345 NMEA2000® 3345 MultiFunction Display
1 x 3345 NMEA2000® Interface Cable
1 x Bag containing 4 mounting studs and thumbwheel nuts
1 x 3345 User Manual
