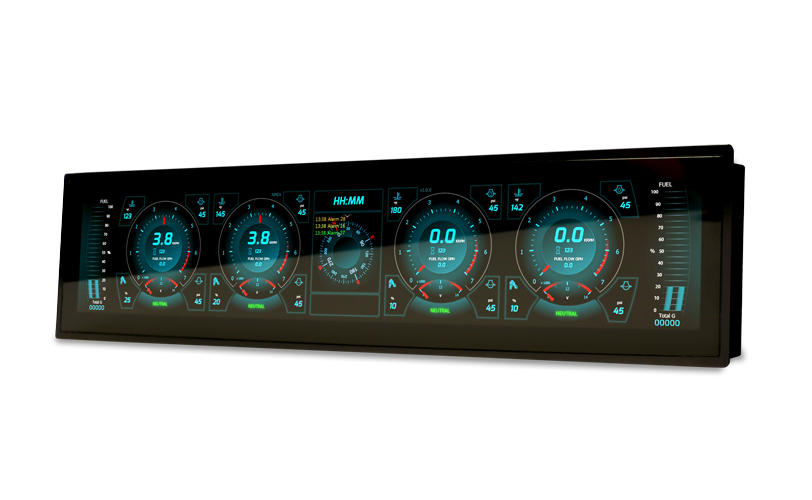

Oceanic Systems MultiEngine Display 20" Wide Format Display - 4161

Oceanic Systems’ new Multiple Engine Display provides a sleek and modern single display to replace the multiple original engine manufacturer’s displays at a lower cost without compromising the engine manufacturer’s warranty.

The Multiple Engine Display, Part No 4161, has both J1939 and NMEA2000® built-in interfaces that displays all the important engine data in real time and accepts and displays engine manufacturers published error messages if they occur.

The unit is switch selectable between engines from Caterpillar, Cummins, MAN, MTU, Volvo, Yanmar and many others. It has been tested with all the available engine manufacturers’ error messages to ensure that they are displayed accurately. The unit is also switch-selectable between SI and American display units.

It also displays from 1 to 4 fuel tank levels, the rudder/steering angle indicator and a GPS CompassRose and local GPS time from the NMEA2000® network.

Certified to work with both J1939 and NMEA2000® devices the Mulitple Engine Display provides a modern and clean single display instead of the bulkier and more old-fashioned separate engine displays.

Provides Colour Display for all the following devices on an NMEA2000® network:

  • Sunlight readable dimmable display using our BlackGlass™  technology
  • Two direct J1939 interfaces and one NMEA2000© interface
  • Remote button panel providing: Backlight up/down, alarm mute
  • Selectable Engine Manufacturer (MTU, MANN, Caterpillar and others) via simple rotary switch on rear of display (see installation manual for further details regarding support or NMEA 2000 and J1939 connections for differ for the engines supported)
  • Switch settable Display Units
  • Logging of all alarm conditions for later analysis
  • Internal 105dB Sounder

Please Note: Special Order Items are not returnable.
