Oceanic Systems Portrait Dual Engine Display - 4166

Oceanic Systems Portrait Dual Engine Display - 4166

Regular price $3,750.00 USD
Regular price $3,750.00 USD Sale price $3,750.00 USD
Sold out
Shipping calculated at checkout.

View full details

Oceanic Systems Portrait Dual Engine Display - 4166

Special Order

Oceanic Systems’ new vertical Dual Engine Display provides a sleek and modern single display to replace the two original engine manufacturer’s displays at a lower cost without compromising the engine manufacturer’s warranty.

The Dual Engine Display, Part No 4166, has both J1939 and NMEA2000® built-in interfaces that displays all the important engine data in real time and accepts and displays engine manufacturers published error messages if they occur.

The unit is switch selectable between engines from Caterpillar, Cummins, MAN, MTU, Volvo, Yanmar and many others. It has been tested with all the available engine manufacturers’ error messages to ensure that they are displayed accurately. The unit is also switch-selectable between SI and American display units.

The 4166 also displays fuel tank contents from 1 to 4 tanks, the current rudder angle, GPS time and the GPS Compass if there are no error messages to display.

Certified to work with both J1939 and NMEA2000® devices the Dual Engine Display provides a modern and clean single display instead of the bulkier and more old fashioned separate engine displays.

Provides Color Display for all the following devices on an NMEA2000® network:

  • Sunlight readable dimmable display using our BlackGlass™  technology
  • Two direct J1939 interfaces and one NMEA2000© interface

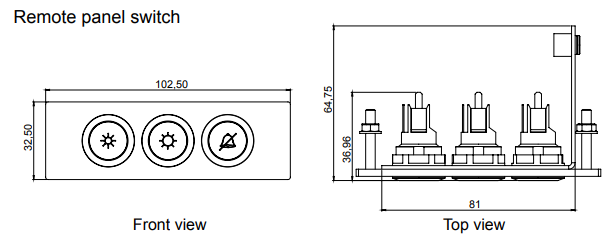

  • Remote button panel providing: Backlight up/down, alarm mute
  • Selectable Engine Manufacturer (MTU, MANN, Caterpillar and others) via simple rotary switch on rear of display
  • Switch settable Display Units
  • Logging of all alarm conditions for later analysis
  • Internal 105dB Sounder

Please Note: Special Order Items are not returnable.
