PEAK-MiniDiag NMEA 2000 - MPEH-001011

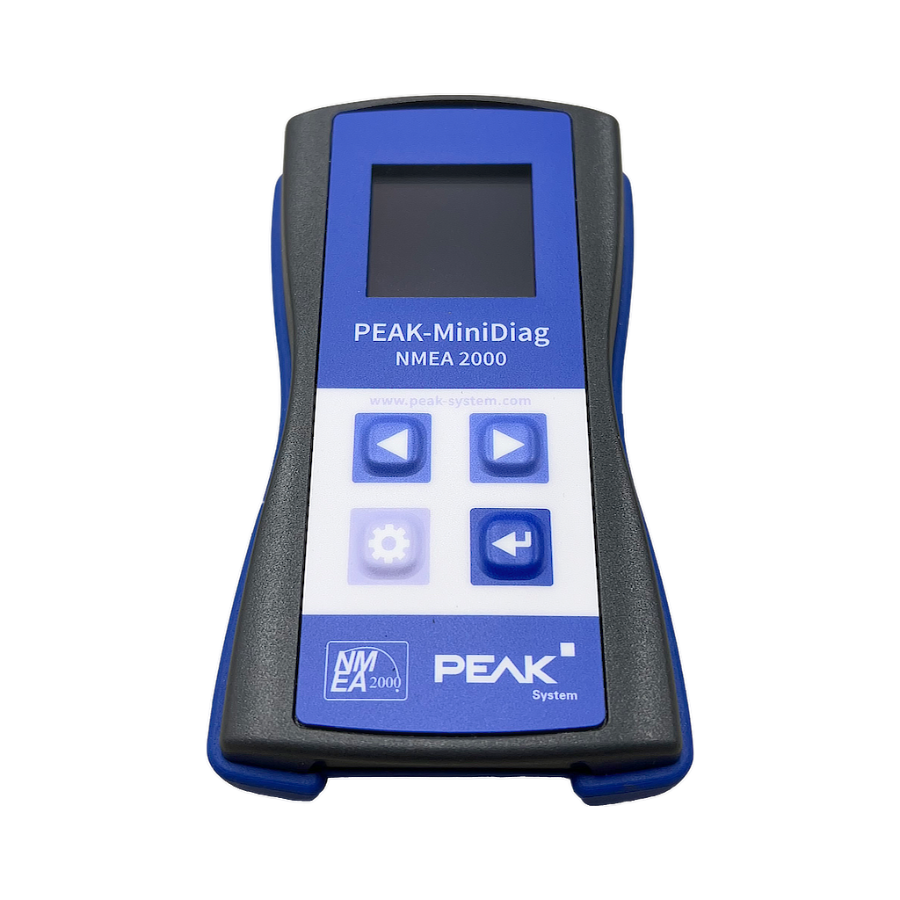

The PEAK-MiniDiag NMEA 2000 is a portable, affordable handheld device for diagnosing NMEA 2000® networks. Users can validate networks, detect flaws, and aid device installation with its wide range of measuring functions, including voltage measurements, CAN termination, and bus load.

Multiple values like the current, the minimum, and maximum measurements are displayed on a single screen, giving an instant insight in the network's performance. The color-coded measurement indication ensures effortless reading and easy interpretation. With this, NMEA 2000® diagnostic is accessible for everyone, for experienced technicians as well as novices.

The PEAK-MiniDiag NMEA 2000 has an increased ingress protection due to its casing and membrane keypad. The device can be powered via the NMEA 2000® network supply or three replaceable batteries.


  • High-speed CAN connection (ISO 11898-2)

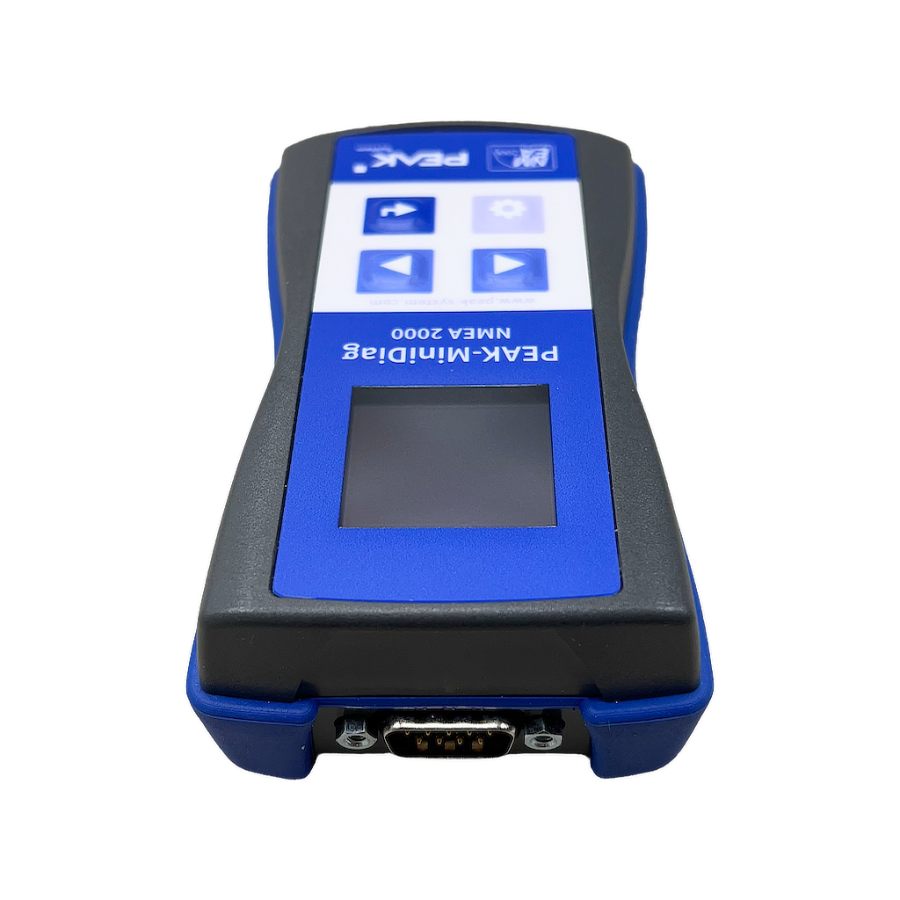

  • CAN bus connection via D-Sub, 9-pin

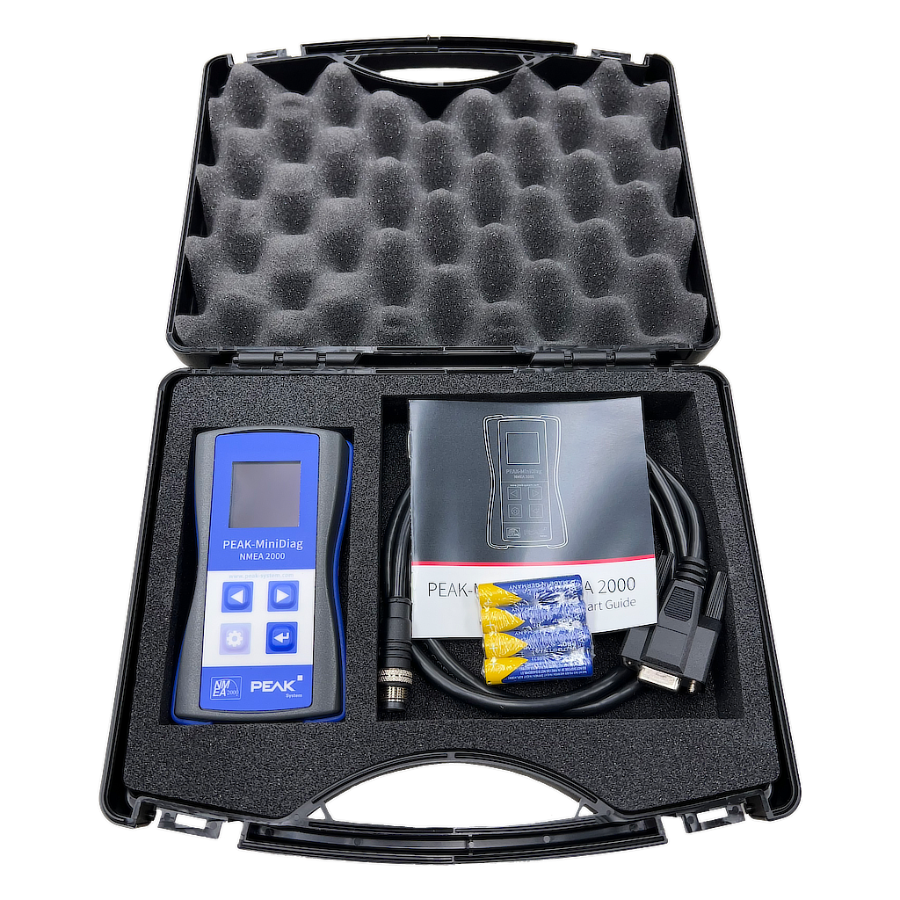

  • NMEA 2000® connection via the supplied adapter cable D-sub, 9-pin to Micro-C circular connector, 5-pin
  • Preset to the NMEA 2000® default bit rate of 250 kbit/s
  • No influence to the CAN bus due to permanent listen-only mode
  • OLED display with 128 x 128 pixel resolution
  • Power supply via the 12-Volt NMEA 2000® network supply or with exchangeable batteries (3 x Micro AAA with 1.2V or 1.5V)
  • Maximum current consumption 25mA, LEN 1
  • Operation via membrane keypad with four keys
  • Plastic casing with increased Ingress Protection IP42
  • Dimensions: 122 x 69 x 44 mm (4.8 x 2.71 x 1.73 inch)
  • Operating temperature range from -10 to +50 ℃ (14 to 122 ℉)

Users Guide

Brand: Peak-System
Country of Origin: Germany
Waterproof Rating: IP42
