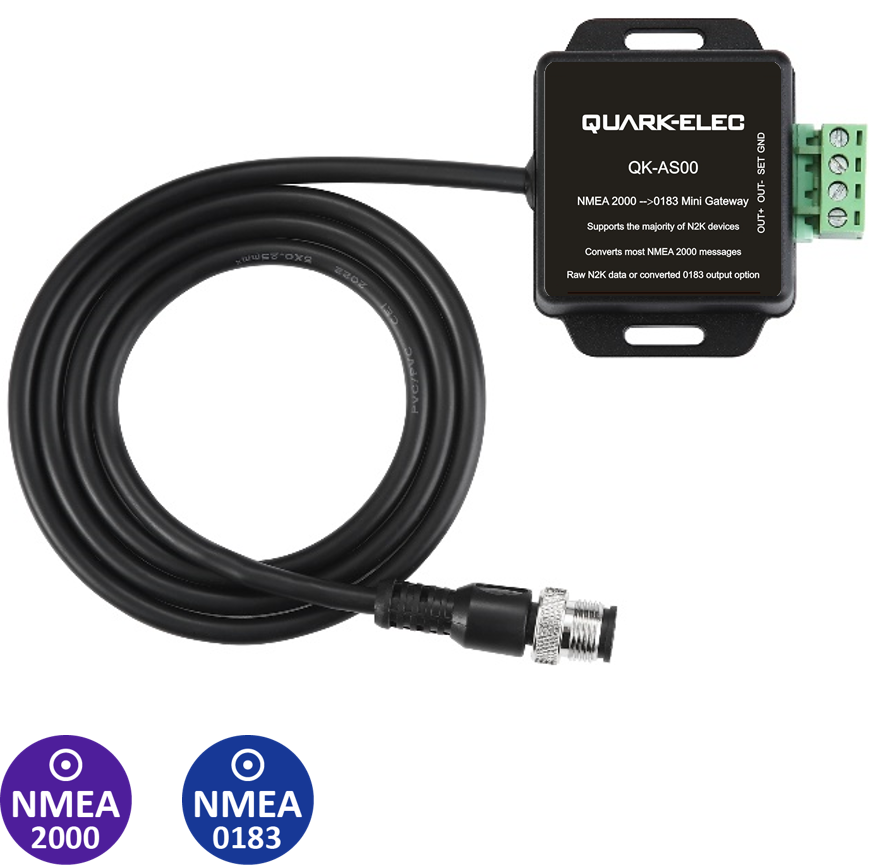

Quark-Elec NMEA 2000 to NMEA 0183 Mini Gateway QK-AS00

Quark-Elec NMEA 2000 to NMEA 0183 Mini Gateway QK-AS00

SKU:QK-AS00

Regular price $139.95 USD
Regular price $139.95 USD Sale price $139.95 USD
Sold out
Shipping calculated at checkout.

Low stock: 1 left

View full details

Quark-Elec NMEA 2000 to NMEA 0183 Mini Gateway QK-AS00

Sophisticated NMEA 2000 to NMEA 0183 mini gateway.

  • Designed to easily fit onto most surfaces
  • Small enough to fit behind instrument panels
  • Compatible with most NMEA 0183 devices  (listeners)
  • Supports the conversion of the majority of NMEA 2000 messages
  • NMEA 0183 output baud rate set to 38.4k bps to reduce the amount of possible data overflow

Description

Introduction

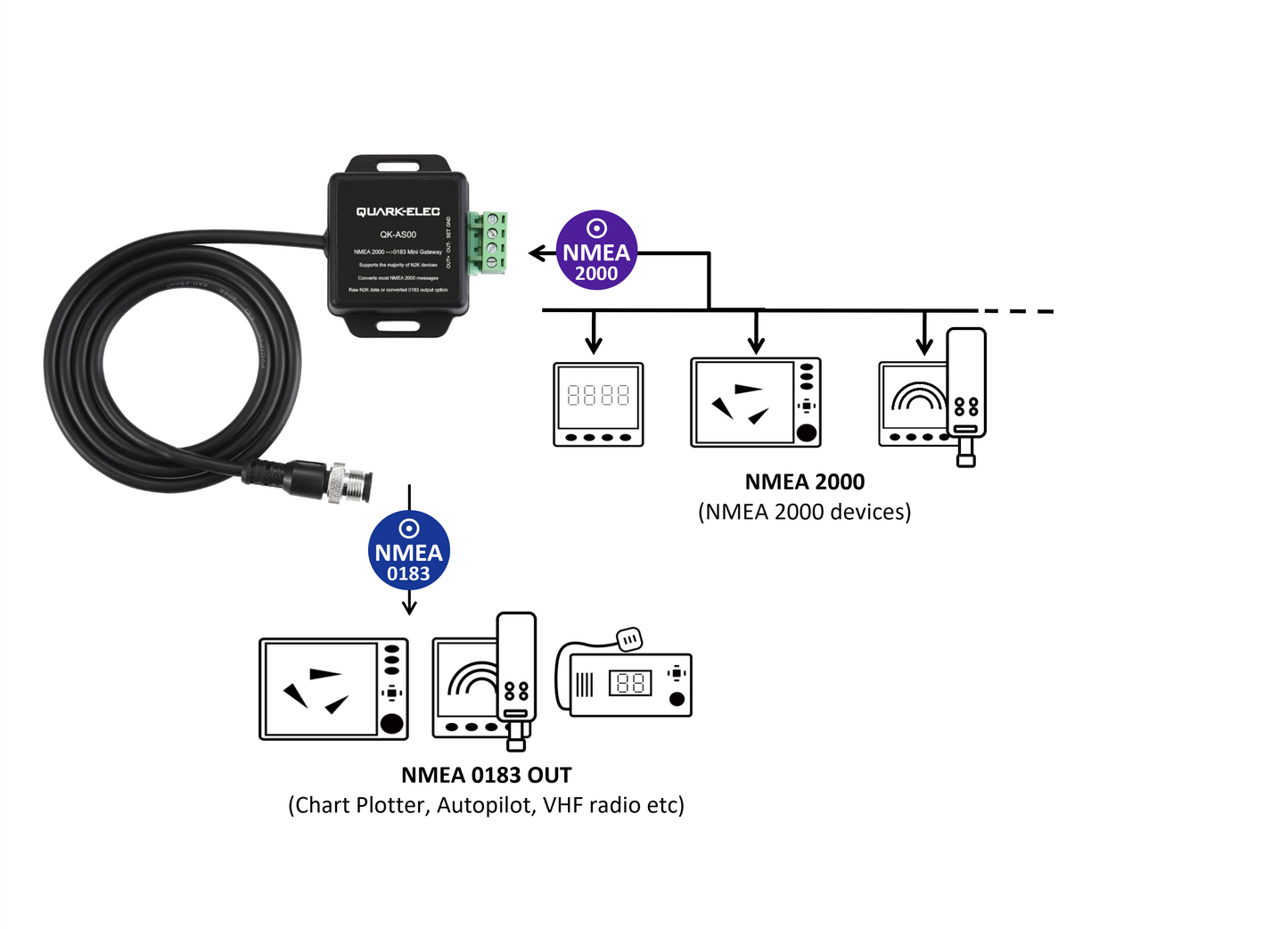

The QK-AS00 NMEA 2000 to NMEA 0183 Mini Gateway provides an easy solution to linking the newer NMEA 2000 network to older NMEA 0183 devices by converting NMEA 2000 PGNs to NMEA 0183 output sentences. The QK-AS00 is compatible with most NMEA 2000 devices and converts the majority of NMEA 2000 messages.

Features

  • Converts the most common NMEA 2000 PGNs into NMEA 0183 sentences
  • Galvanic opto-isolation on NMEA 2000 bus connection
  • Compatible with a wide range of NMEA 0183 devices(listeners)
  • Comes with a pre-fitted 1-meter NMEA 2000 cable
  • NMEA 0183 output baud rate set to 38.4kbps to reduce the amount of possible data overflow.

What’s included

1 x NMEA 2000 to NMEA 0183 mini gateway
