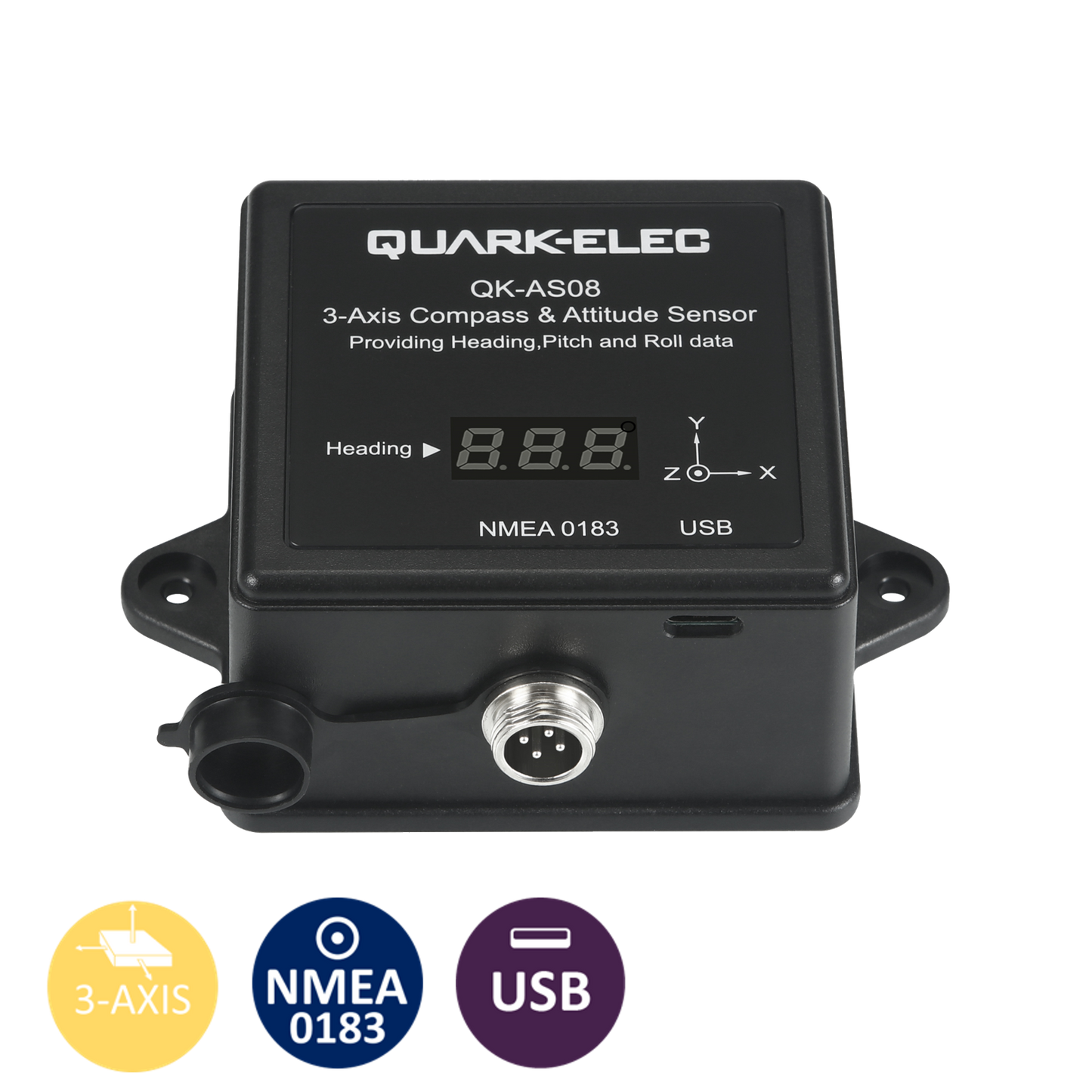

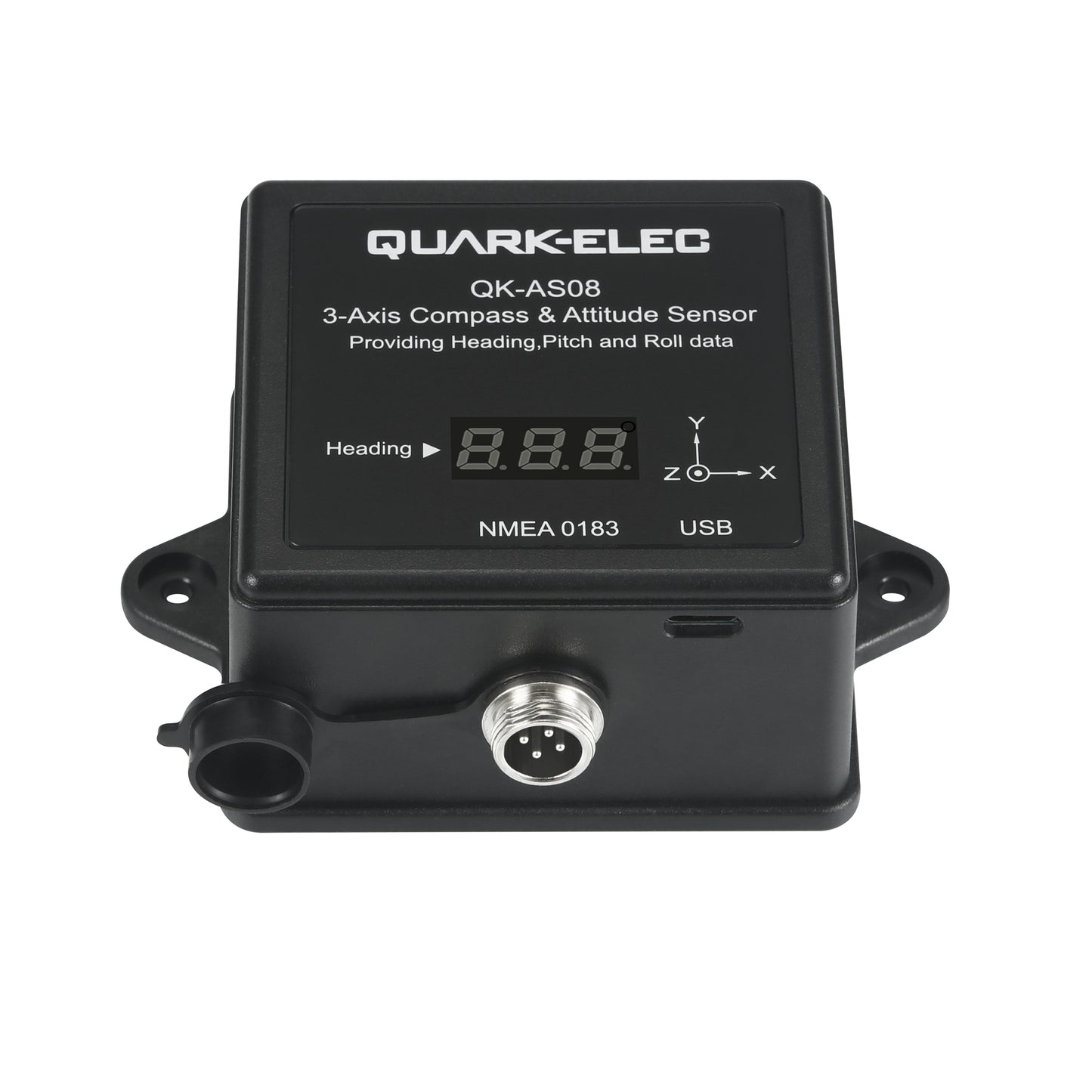

Quark-Elec Three-axis Compass & Attitude Sensor - QK-AS08

Three-axis solid-state compass and attitude sensor

  • Providing heading, pitch and roll data in NMEA 0183 and USB port
  • Enables 0.4° compass heading, and 0.6° roll and pitch accuracy
  • Displays the heading data on the panel
  • Super electromagnetic compatibility
  • Up to 10Hz update rate for heading
  • Low (<75mA) power consumption at 12V DC


The QK-AS08 is a compact, high-performance gyro electronic compass and attitude sensor. It has an integrated 3-axis magnetometer, 3-axis rate gyro and together with the 3-axis accelerometer using advanced stabilization algorithms to deliver precise, reliable heading and vessel attitude including pitch and roll readings in real time.
With solid state electronic technology and additional software, the AS08 provides better than 0.4° heading accuracy through ±45° of roll and pitch angle, and better than 0.6° roll and pitch accuracy in static conditions.
The AS08 has been pre-calibrated for maximum accuracy and super electromagnetic compatibility. It can be used out of the box. Simply connect it with a 12VDC power and it will immediately start calculating the heading, pitch and roll data of the boat and outputting this information. You can filter out this message type if not required (using the Windows configuration tool with AS08).
The AS08 outputs the NMEA 0183 format data via USB and RS422 port. Users can easily connect it to their computer or NMEA 0183 listeners to share information with navigational software, chart plotters, autopilots, vessel data recorder, and dedicated instrument displays.

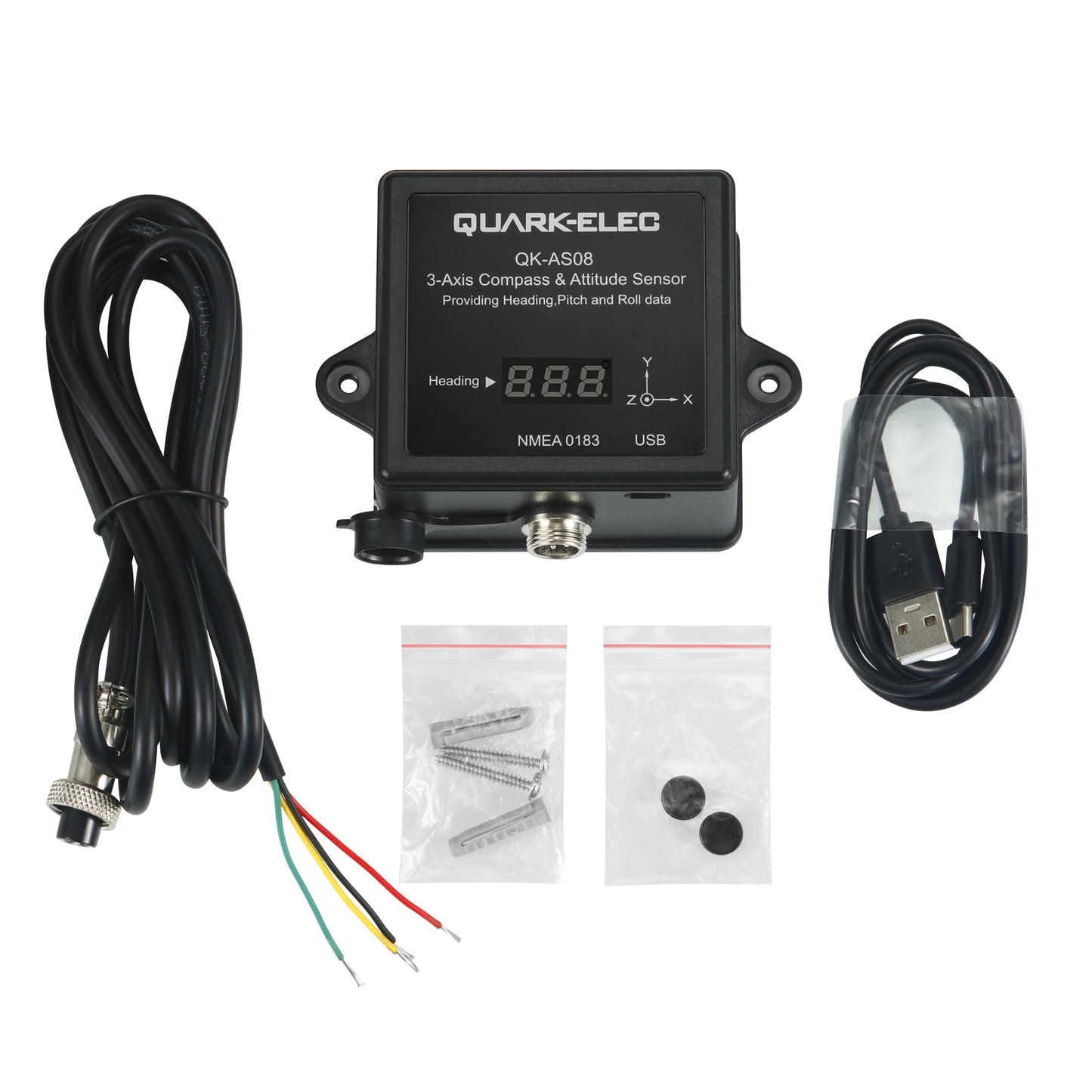

What’s included?

  • 1 x QK-AS08 three-Axis Compass & Attitude Sensor
  • Type-C USB cable1 x Mounting Base (optional)

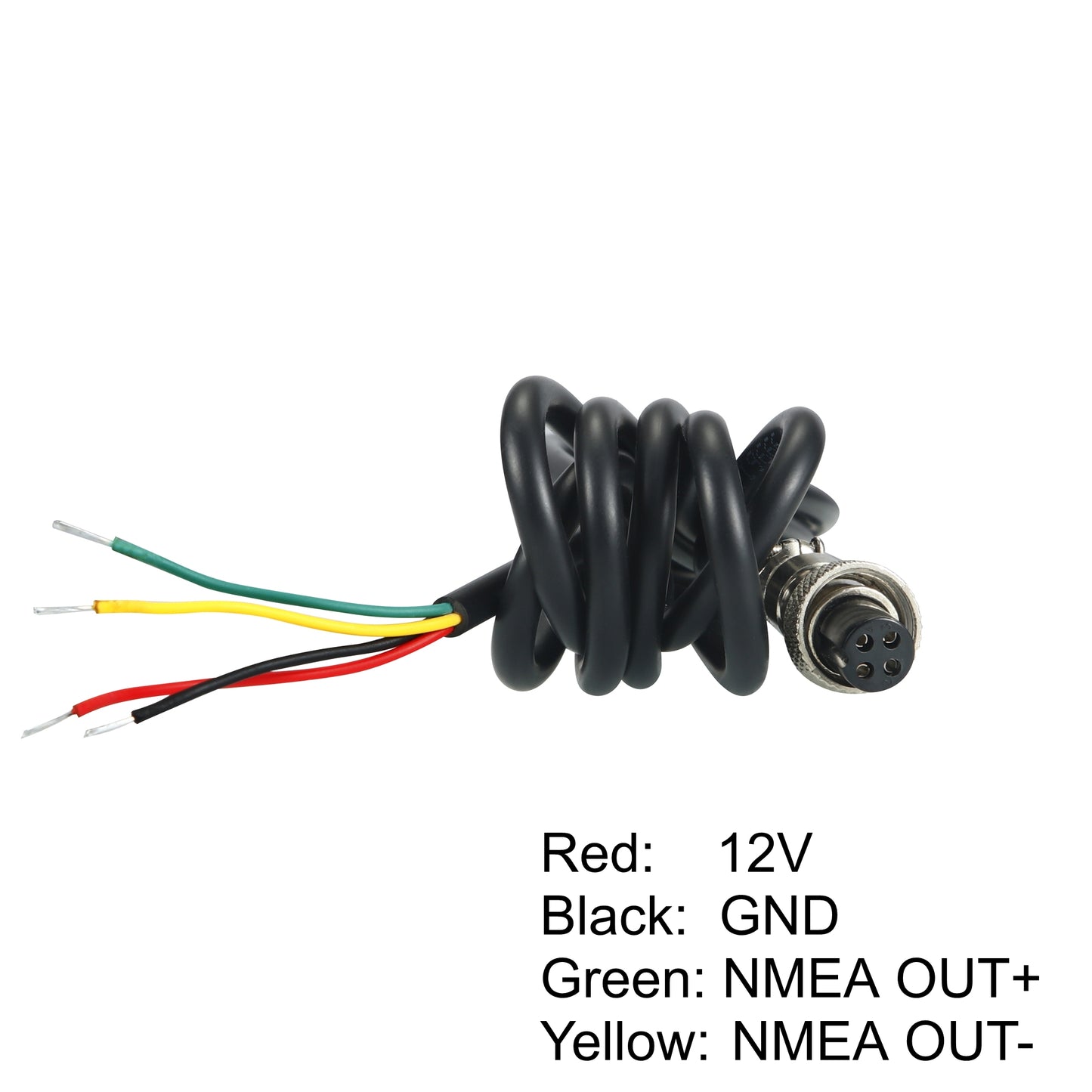

  • 2 meters cable
