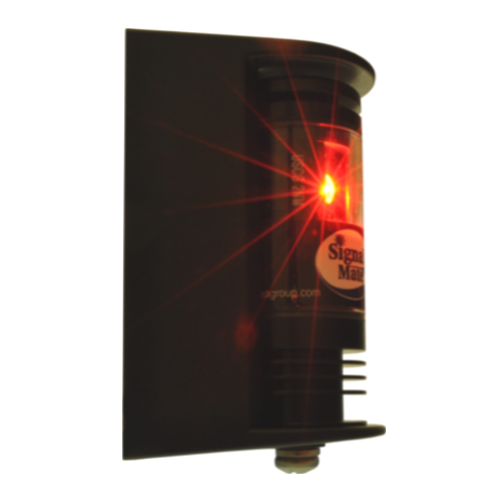

Red LED (112.5 Degree) Port Navigation Light. Certified USCG ABYC-A16 72 COLREGS. 2 Nautical Mile (2NM) visibility for power sailboats and commercial vessels up to 50 meters (164 feet). US Coast Guard approved and used by USCG and other Military vessels since 2006. Rugged & waterproof. Mounting bracket with termination area (BRKTTERM) included.
SPECIFICATIONS:
Visibility: 2NM
Boat Type: Sail and power boats up to 164 ft.
Bracket: Included
Voltage Range: 10-30VDC
Current Draw: 0.100 amp at 12VDC
Construction: Black hard coated anodized aluminum, polycarbonate lens.
Wiring: 2-conductor 20- AWG marine grade (2.5 ft cable supplied)
Size: 1.5 x 3.25 inches
Weight: 6.4 oz
Mounting: 1/4 x 20 female threads atop and bottom or optional adjustable bracket.
Environment: Harsh marine: Waterproof, submersible
Light Source: Single LED, 50,000 hour full-brightness life
Horizontal Viewing Angle: 112.5 degrees
Vertical Viewing Angle: >70 degrees
Warranty: 3 years
Certifications: USCG 2NM, ABYC-A16, COLREGS '72
