Signal Mate

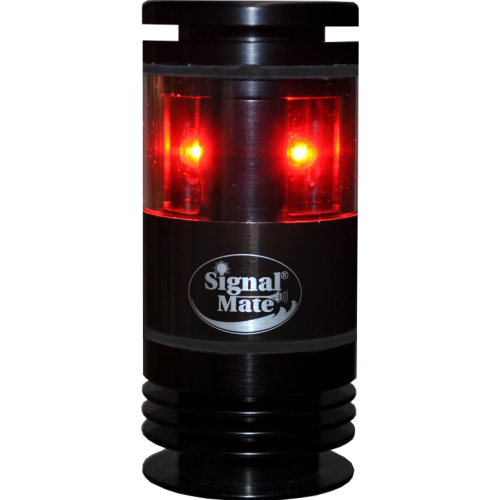

Signal Mate 2NM 360 Degree Red LED Navigation Light - 2NM360R

Signal Mate 2NM 360 Degree Red LED Navigation Light - 2NM360R

SKU:2NM360R

Regular price $182.00 USD
Regular price $260.00 USD Sale price $182.00 USD
Sold out
Shipping calculated at checkout.

View full details

All Round Red Navigation Light.
2 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS.
This light is used in recreational, commercial and military industries for power boats and sailboats  up to 50 meters (164 feet).
Used on U.S.C.G. inspected vessels under 20 meters (65 feet).
U.S.C.G. inspected vessels over 20 meters require navigation lights to be certified to Underwriters Laboratories Standard UL 1104.

SPECIFICATIONS:

Visibility: 2NM All round Red LED Navigation Light
Model #: 2NM360R
Certified: USCG Certified, ABYC A-16, 72 COLREGS
Boat type: Commercial, power, sailboats vessels up to 50 meters (164 feet).
Horizontal Viewing Angle: 360 degrees
Voltage Range: 10-30 VDC  Current Draw: 0.270 amps at 12 VDC
LEDs: 3   Watts: 3   Color: Red
Led Driver: Constant Current
Protection: Polarity & 1500 watt surge
LED: High Brightness 50,000 hours  EMI: Active filtering.
Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
Wiring: 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
Installation: 2 wire
Durability: Water & Vibration proof
Dimensions:  Height 3.25” x 1.5” Diameter  Weight: 6.4 oz
Mounting: ¼” x 20 female threads on bottom of light for mounting.

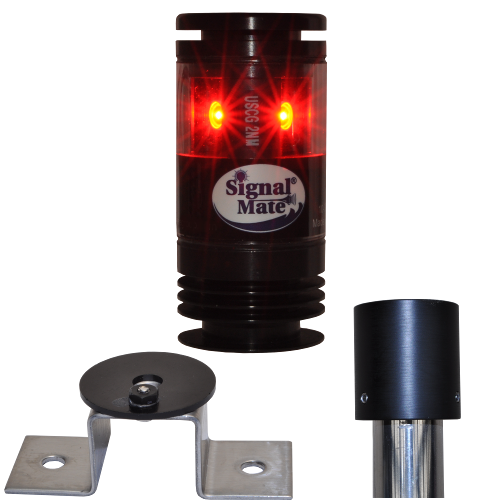

Bracket Included: BRKT360
Brackets Optional:  PADPT1, PADPT75
Warranty: 5 Year Limited Warranty covering materials and workmanship.
Made in USA


Drawings

Specifications

Owners Manual

Navigation Light Bracket Guide
