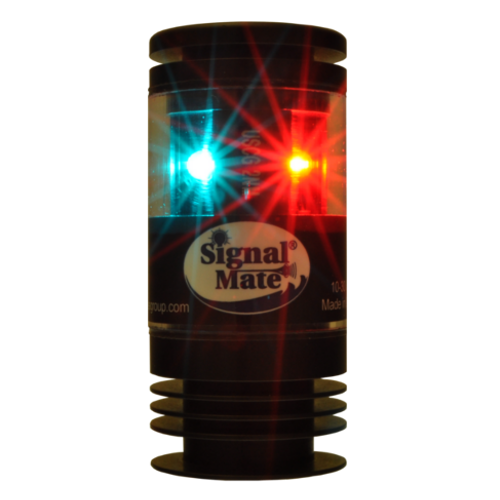

Signal Mate 2NM Bi-Color (Port and Starboard) LED Navigation Light - 2NMBI225

Signal Mate 2NM Bi-Color (Port and Starboard) LED Navigation Light - 2NMBI225

SKU:2NMBi225

Regular price $182.00 USD
Regular price $260.00 USD Sale price $182.00 USD
Sold out
Shipping calculated at checkout.

View full details

Bi-Color LED ( 112.5 Degree Port/Red and 112.5 Degree Starboard/Starboard) Navigation Light in a single fixture. Certified USCG, ABYC-A16, 72 COLREGS. 2 Nautical Mile (2NM) visibility for power, sailboats and commercial vessels up to 20 meters (65 feet). US Coast Guard approved and used by USCG and other Military vessels since 2006. Rugged & waterproof. Mounting bracket with termination area (BRKTTERM) included.

SPECIFICATIONS:

Visibility: 2NM
Boat Type: Sail and power boats up to 65 ft.
Voltage Range: 10-30VDC
Current Draw: 0.100 amp at 12VDC
Construction: Black hard coated anodized aluminum construction, polycarbonate lens.
Wiring: 2-conductor 20- AWG marine grade (2.5 ft cable supplied)
Size: 1.5 x 3.25 inches.
Weight: 6.4 oz
Mounting: 1/4 x 20 female threads atop and bottom or optional adjustable bracket.
Environment: Harsh marine: Waterproof, submersible
Light Source: LED, 50,000 hour full-brightness life
Horizontal Viewing Angle: 112 degrees
Vertical Viewing Angle: >70 degrees
Warranty: 3 years
Certifications: USCG 2NM, ABYC-A16, COLREGS '72
