Signal Mate

Signal Mate 2NM Tri-Color / Anchor with Wind Indicator Illumination - No Photo-cell (2 Wire Installation) - TRIANC2

Signal Mate 2NM Tri-Color / Anchor with Wind Indicator Illumination - No Photo-cell (2 Wire Installation) - TRIANC2

SKU:TRIANC2

Regular price $266.00 USD
Regular price $380.00 USD Sale price $266.00 USD
Sold out
Shipping calculated at checkout.

View full details

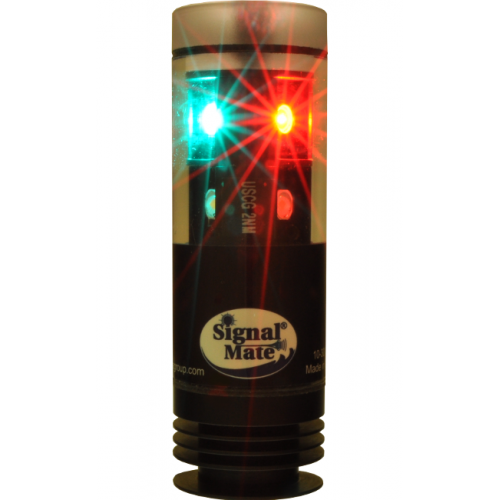

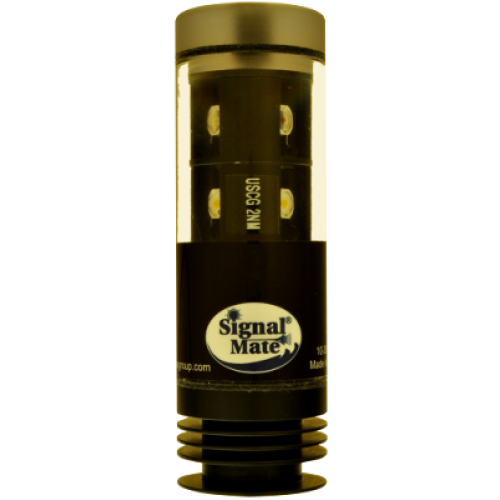

LED Combination Tri-Color / Anchor Navigation Light with Wind Indicator Illumination - No Photo-cell (2 Wire Installation). Certified USCG ABYC-A16 72 COLREGS. 2 Nautical Mile (2NM) visibility for sailing vessels up to 20 meters (65 feet). Rugged & waterproof. 360 mounting bracket (BRKT360) and reversing switch to reverse the polarity of the DC voltage are included.

The Tri-Color light has a clear window on top of the light that allows the stern light to shine up-ward to illuminate the wind vane for night sailing.

Uses five times less power than comparable incandescent Tri-Color lights. The light provides constant brightness over the full operation range of 10 to 30 volts. This insures the light will meet or exceed the visibility requirements as the battery voltage drops from use during night time sailing.

This item can be order with and without a photo-cell for auto day / night operation.

With photo-cell TRIANC3P.

Without photo-cell TRIANC3.

This light requires two switches - one for the Tri-Color light and one for the anchor light.


SPECIFICATIONS:

Visibility: 2 NM
Vertical Viewing Angle: +/- 36 degrees
Application: Sailboats up to 65 feet
Voltage Range: 10 to 28 VDC
Current Draw: 0.3 amp at 12V
Weight: 8.2 oz
Height: 4.5 inches
Diameter: 1.5 inches
Durability: Waterproof, submersible
Wiring: 3-Conductor Cable, 2.5 feet long
Warranty: 3 years
Certifications: USCG 2NM, COLREGS '72, ABYC A-16

Drawings

Specifications

Owners Manual

Navigation Light Bracket Guide
