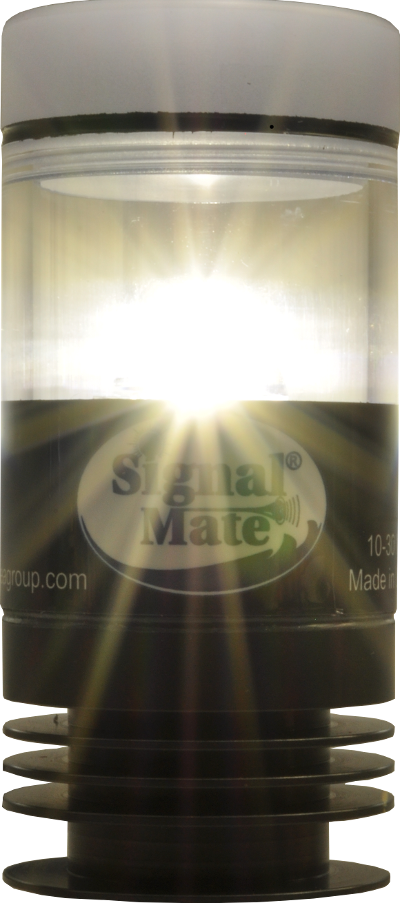

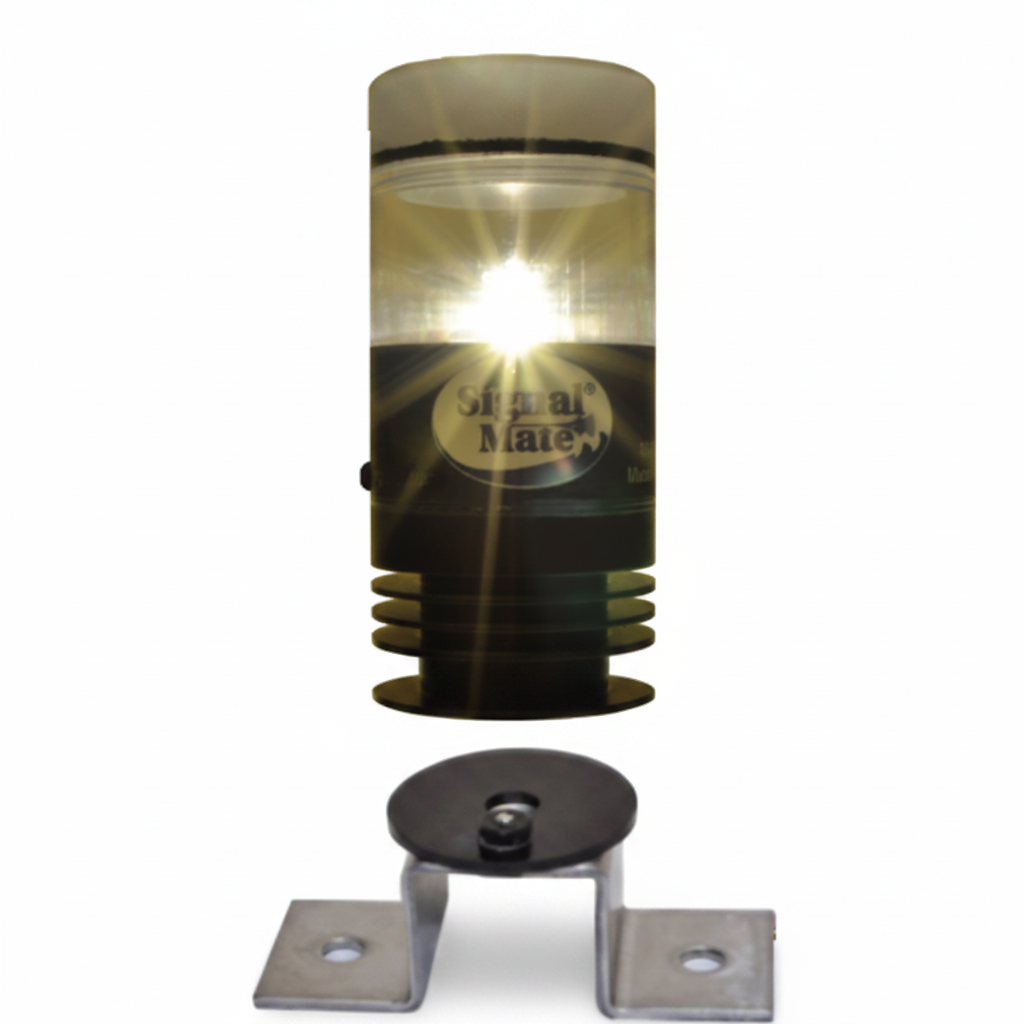

White LED All Round (360 degrees) Navigation Light.Certified USCG, ABYC-A16, 72 COLREGS. 3 Nautical Mile (3NM) visibility for power, sailboats and commercial vessels up to and over 50 meters (164 feet). US Coast Guard approved and used by USCG and other Military vessels since 2006. Rugged & waterproof. 360 mounting bracket (BRKT360) included.
SPECIFICATIONS:
- Model #: 3NM360WS
- Visibility: 3NM Anchor, All round LED Navigation Light
- Visibility: 3NM Strobe/ Distress at 60 Flash Per Min
- Certified: USCG Certified, ABYC A-16, 72 COLREGS
- Boat type: Commercial, power, sailboat up to and over 50 meters (164 feet).
- Horizontal Viewing Angle: 360 degrees
- Voltage Range: 10-30 VDC
- Current Draw: 0.160 amps at 12 VDC
- Protection: Polarity & 1500 watt surge
- LED: High Brightness 50,000 hours
- LEDs: 1 Watts: 1 Color: White Led Driver: Constant Current EMI: Passive filtering.
- Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
- Wiring: 2.5 feet, 3 wire, 20 AWG tinned, UV jacket marine wire.
- Installation: 3 wire Durability: Water & Vibration proof
- Dimensions: Height 3.25” x 1.5” Diameter
- Weight: 6.4 oz
- Mounting: ¼” x 20 female threads on bottom of light for mounting.

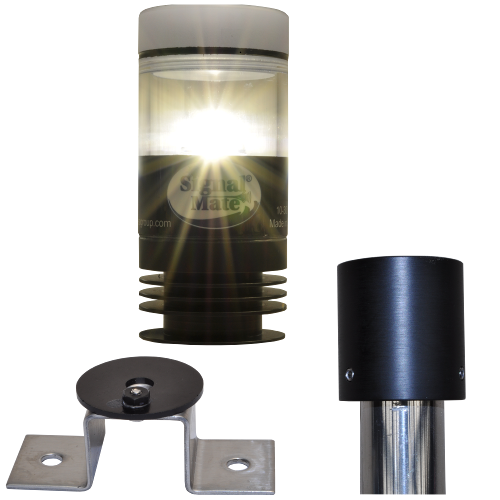

- Included: DPDT wired switch, BRKT360
- Brackets Optional: PADPT1, PADPT75
- Warranty: Limited Lifetime, failed light or defects in material & workmanship.
- Made in USA
