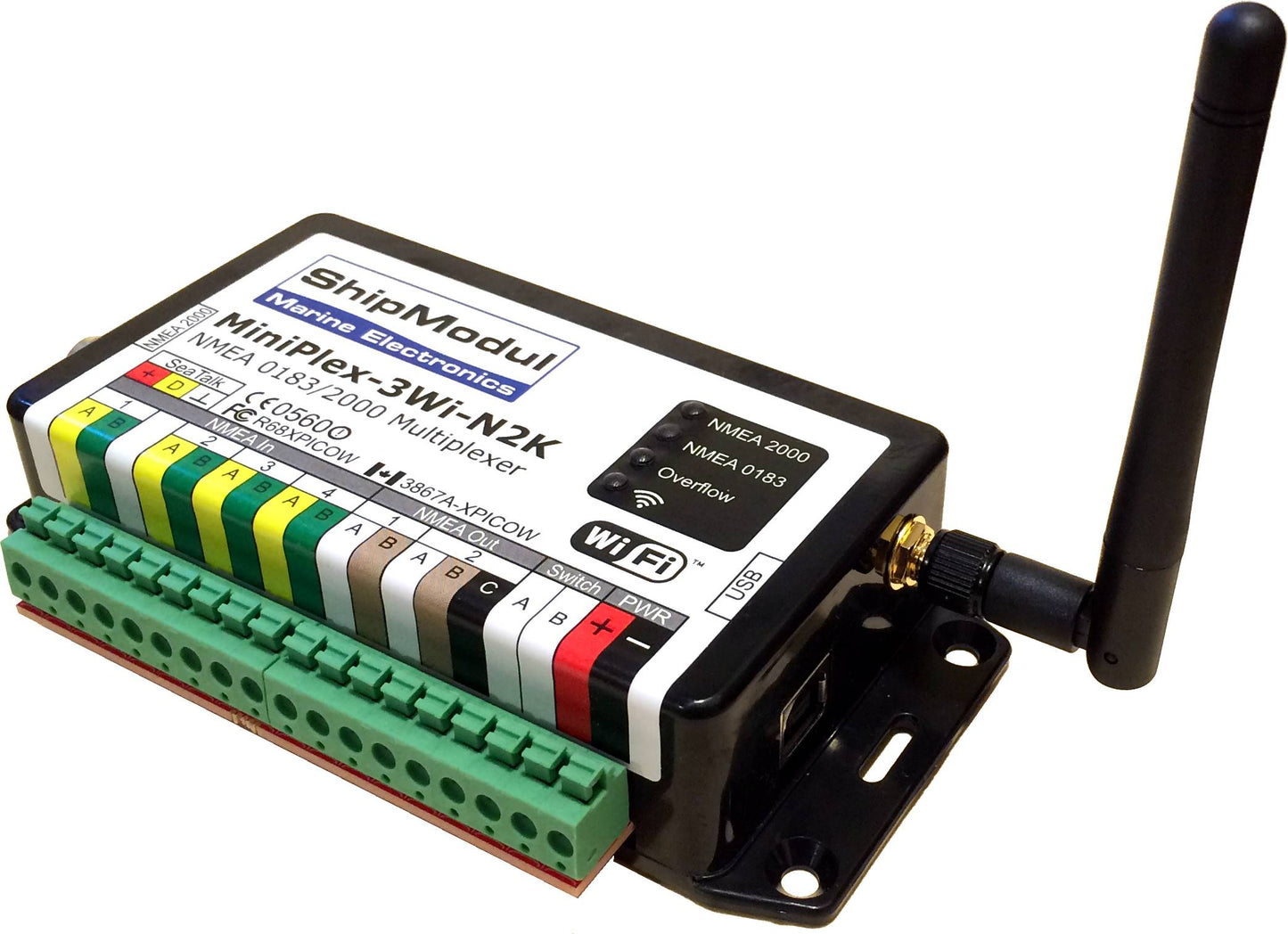

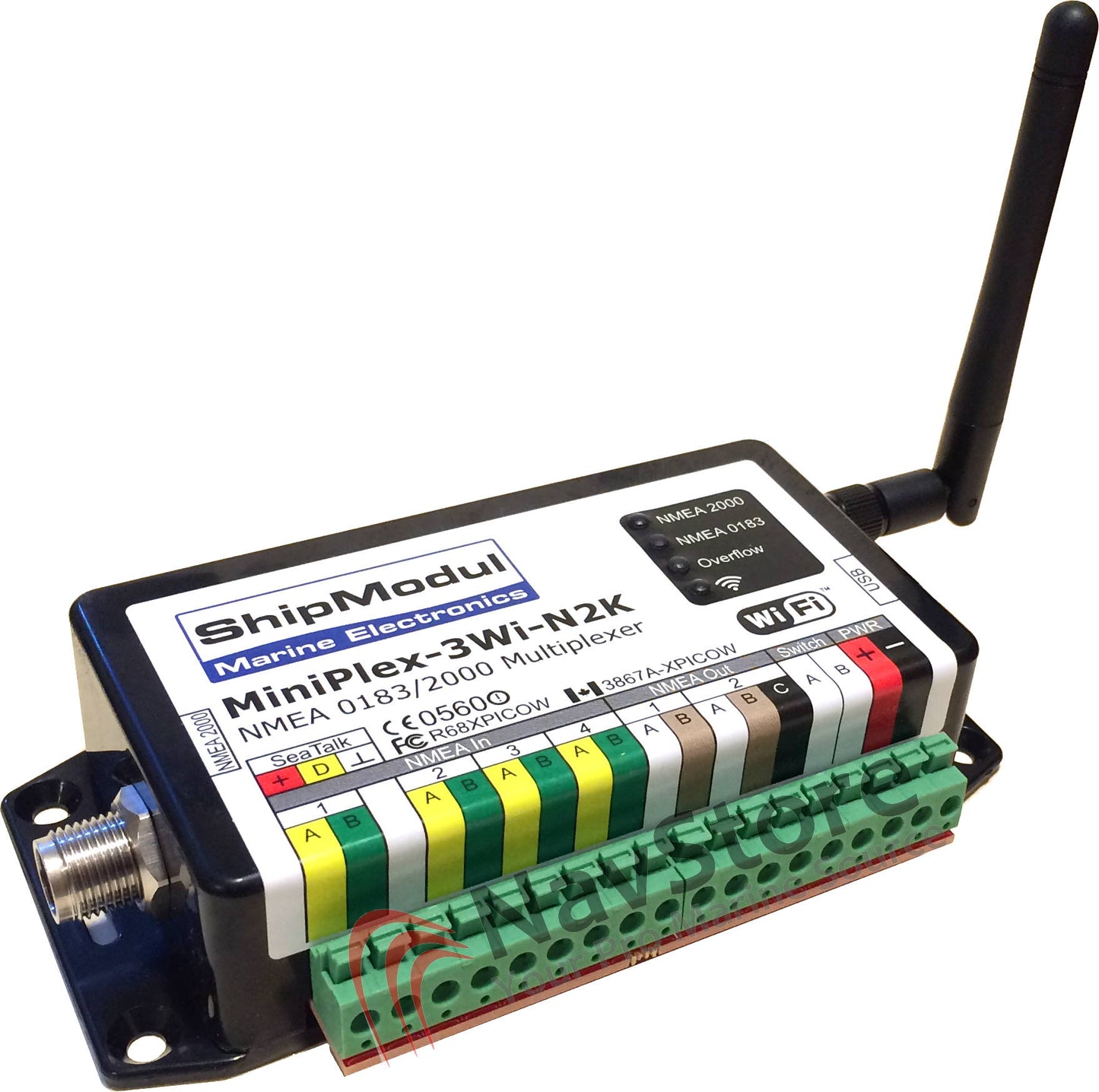

Shipmodul MiniPlex-3WI-N2K - 1137 - WiFi USB

MiniPlex-3 Series

The MiniPlex-3 Series NMEA multiplexers comprises a range of advanced NMEA multiplexers which combines data from multiple navigation instruments.

Through an advanced filtering and routing system, this data can be sent to other navigation instruments and to computers, tablets and smartphones.

A bi-directional SeaTalk1 interface enables conversion between SeaTalk1 data and NMEA 0183 sentences. This conversion works both ways, allowing the MiniPlex-3 to replace Raymarine's SeaTalk-NMEA bridge (E85001).

MiniPlex-3 models with an NMEA 2000 interface (-N2K suffix) connect directly to an NMEA 2000 backbone and convert between NMEA 2000 PGN's, NMEA 0183 sentences and SeaTalk1 datagrams in all directions.

All data is available on one or more computer interfaces in NMEA 0183 format. NMEA 2000 PGN's and SeaTalk datagrams for which no NMEA 0183 equivalent exists, can be converted to special NMEA 0183 sentences, allowing software developers to support processing of raw NMEA 2000 and SeaTalk data.

Each and every port on a MiniPlex-3 multiplexer is galvanically isolated from the internal electronics and from every other port. This guarantees that no ground loops will be created when adding a MiniPlex-3 to a navigation network. It also ensures a trouble free connection to any type of NMEA 0183 port of any device.

The MiniPlex-3 multiplexers are all functionally identical but differ in type and number of computer interfaces.

Replacement for E85001 PC/SeaTalk/NMEA 0183 Interface Module - The Raymarine E85001 PC/SeaTalk/NMEA 0183 Interface Module was retired several years ago. Raymarine has not introduced a replacement for this device. The Shipmodul 1131, 1132, 1133, 1135, 1136 and 1137 have a bi-directional SeaTalk 1 interface which enables conversion between SeaTalk1 data and NMEA 0183 sentences. This conversation works both way, allowing the MiniPlex-3 units to replace Raymarine's discontinued SeaTalk - NMEA bridge E85001. Model Computer interface NMEA 2000
1131 MiniPlex-3USB USB
1132 MiniPlex-3E Ethernet
1133 MiniPlex-3Wi WiFi and USB
1135 MiniPlex-3USB-N2K USB Yes
1136 MiniPlex-3E-N2K Ethernet Yes
1137 MiniPlex-3Wi-N2K WiFi and USB Yes

*) Available in Q2 2016


The MiniPlex-3 Series has a rich set of features and configuration options, enabling the user to tackle almost any NMEA bottleneck or interface problem. The supplied Windows utility MPX-Config3 allows full configuration of the multiplexer and monitoring of NMEA data passing through the multiplexer.

NMEA routing

NMEA data can be routed from any input to any output. A default route can be set as well as specific routing rules for individual NMEA sentences.
Computer data can be routed to any NMEA output, to be merged with other NMEA data or to override this data. This enables automatic switching between computer based navigation and GPS/instrument based navigation.

NMEA filtering

A flexible NMEA filter can be configured to pass or block specific sentences from each input channel. This greatly reduces the chance of an overflow and the resulting loss of data. Many GPS receivers for instance, transmit an abundance of sentences every second, accounting for 85% of the available bandwidth of an NMEA 0183 port at 4800 Baud. By blocking unwanted or unnecessary sentences, bandwidth is preserved for other instruments. The filter can also be configured to reduce the rate of specific NMEA sentences.

Flexible communication speed

The communication speed of all inputs and outputs can be set from 4800 to 57600 Baud to allow connection of devices that operate at non-standard (4800 Baud) communication speeds like integrated weather sensors, gyrocompasses or AIS receivers and transponders.

NMEA 2000
(-N2K models only)

The MiniPlex-3-N2K models are equipped with an NMEA 2000 interface to connect to an NMEA 2000 backbone with other navigation instruments. The MiniPlex-3 will translate NMEA 2000 PGN’s (messages) into NMEA 0183 sentences and vice versa. This feature enables a seamless integration between NMEA 0183 and NMEA 2000 navigation devices. It also allows navigation software, which usually only supports NMEA 0183, to receive data from NMEA 2000 devices and to control NMEA 2000 autopilots.

SeaTalk® conversion

When Input 1 is set to SeaTalk mode, this NMEA input becomes a bi-directional SeaTalk port, offering conversion between the most common SeaTalk datagrams on a Raymarine SeaTalk1® network and their NMEA 0183 counterparts. These sentences are combined with NMEA sentences received on the other inputs. When Priority is enabled, SeaTalk data can be assigned highest or lowest priority. Currently, only conversion from SeaTalk1 to NMEA 0183 supported. Conversion from NMEA 0183 to SeaTalk1 will be available soon through a firmware update.

Real-Time forwarding

Gyro- and fluxgate compasses produce NMEA sentences at a high rate (10 sentences/second or more). This can lead to a buffer overflow in the multiplexer. Although this overflow is handled properly without data corruption, it will lead to a delay of NMEA sentences of up to 20 seconds in extreme situations. This produces a severe problem for autopilots, which cannot make proper course corrections when their heading feedback is delayed for 20 seconds. The Real-Time option prevents this delay by bypassing the buffer of that specific channel and forwarding the data immediately to the multiplexer's NMEA output. As a result, the heading is never delayed more than 0.2 to 0.5 seconds, depending on the amount of other NMEA sentences passing through the multiplexer.


With Priority enabled, similar NMEA sentences on different inputs are only passed from the input with the highest priority. When for instance two GPS receivers are connected to inputs 1 and 2, and both transmit the same type of NMEA sentences, only those received on input 1 are passed. An adjustable time-out ensures that similar sentences from the GPS at input 2 are passed when the GPS at input 1 stops sending these sentences. Optionally, GPS sentences are checked for a valid status field, causing automatic switchover when the primary GPS looses satellite signal.

An additional option to check the GPS status flags can be enabled to ensure that data received from a GPS which lost satellite reception is also blocked.

Channel information

This features adds an extra $--STN sentence or a TAG block to NMEA sentences to indicate on which NMEA input a sentence is received.

Talker ID substitution

Talker ID substitution changes the talker ID of incoming sentences. The talker ID can be specified for each input channel. This option is useful for software or instruments that expect a specific talker ID or to distinguish between sentences from two similar instruments.

NMEA conversions

The MiniPlex-3 offers several conversion options for NMEA sentences:

  • Magnetic to True heading conversion and vice versa
  • GPS speed to Log speed and vice versa
  • Reverse True heading
  • Old (VWR) to new (MWV) wind sentences and vice versa
  • Relative/Apparent to Theoretical/True wind
  • RMC to GGA

Screenshot of MPX-Config3.
Click to enlarge

MiniPlex-3E Technical specifications:

Supply voltage:

8-35VDC, secured against reversed polarity

Current consumption:

100mA (150mA max. with fully loaded talker ports)

Computer interface:

10BASE-T/100BASE-TX Ethernet

Supported protocols:

TCP/IP and UDP, port 10110 for NMEA 0183 data.
TCP/IP, port 10110 for firmware updates.
TCP/IP and UDP, port 30718 for network configuration.
ARP, ICMP and DHCP for network management.


4 x NMEA 0183/RS-422, galvanically isolated.
Input 1 can be set to SeaTalk mode.

Input resistance:

> 1.4 kOhm

Input current:

0.5mA @ 2V
3.0mA @ 5V
7.1mA @ 10V


2 x NMEA 0183/RS-422, galvanically isolated.

Max ouput current:

20mA @ > 2V

Filter list size:

50 sentence types

Priority list size:

50 sentence types

Speed NMEA In 1-3:

4800 - 57600 baud

Speed NMEA In 4/Out 1:

4800 - 57600 baud

Speed NMEA Out 2:

4800 - 115200 baud


138 x 62 x 30mm
